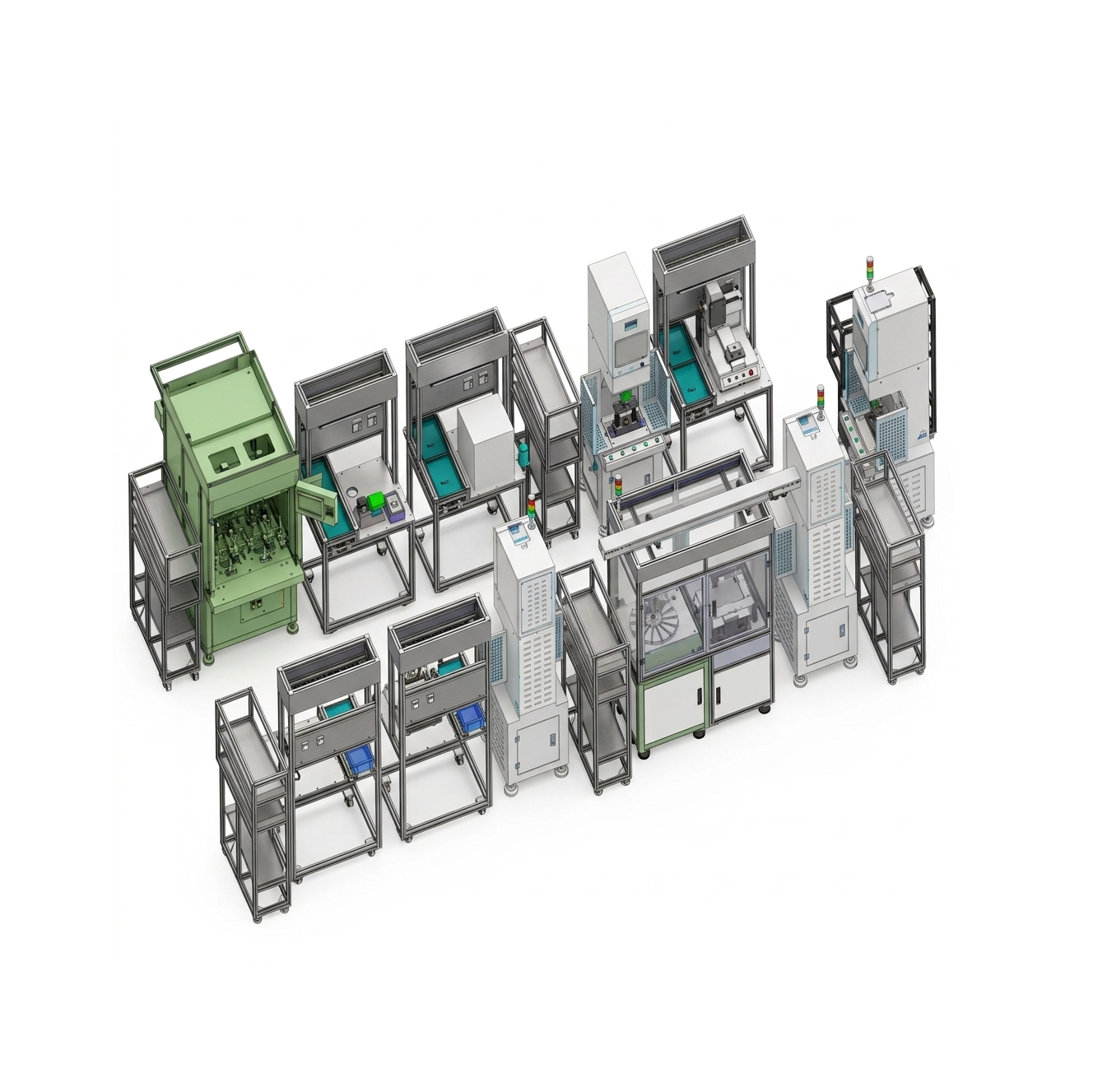

Ningbo Rimy Electrical Co., Ltd. offers a full-automatic FPV motor production line specially designed for brushless drone motor assembly. This advanced system integrates key automated processes, including:
With a modular design and full MES integration, the line supports quick switching between motor models, making it ideal for small-batch, multi-model production environments.
| Station No. | Equipment Name | Qty | Model | Automation Level | Operators |

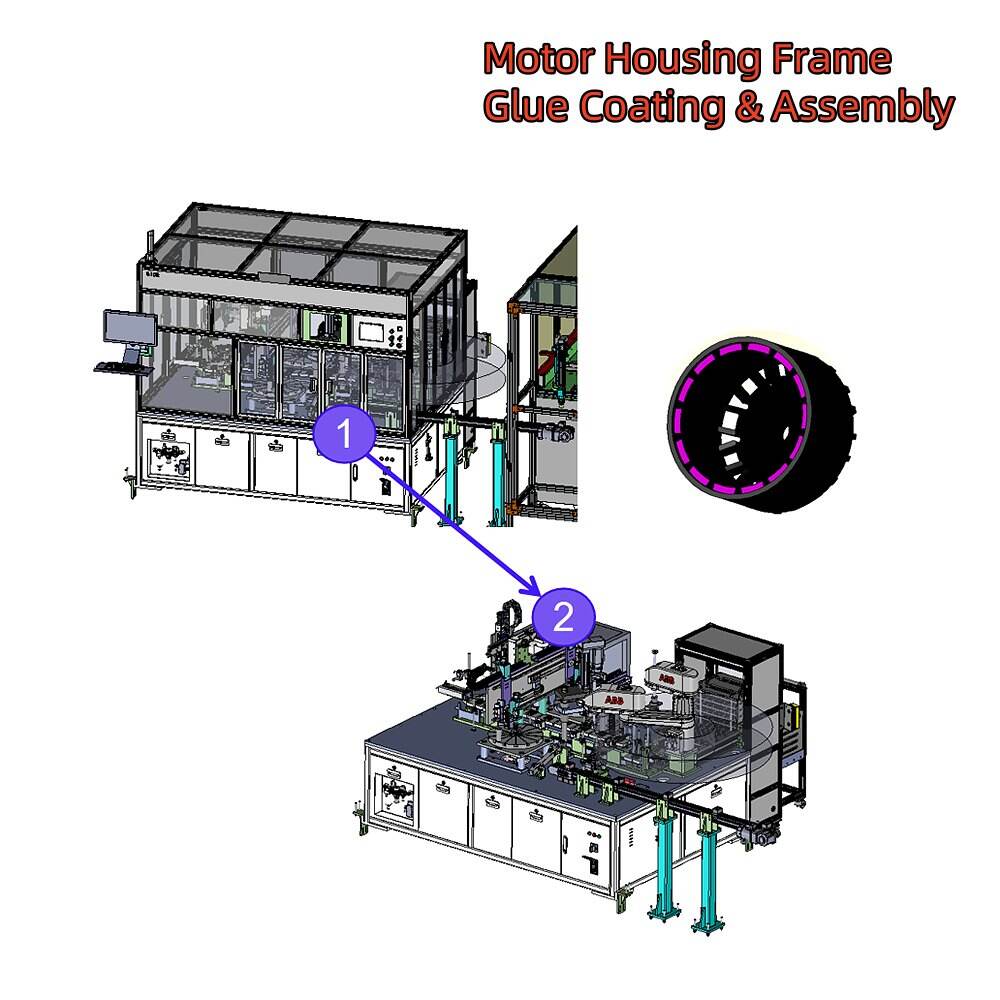

| OP010 | Motor Housing Frame Glue Coating & Assembly | 1 | NBNL-R01 | Auto | |

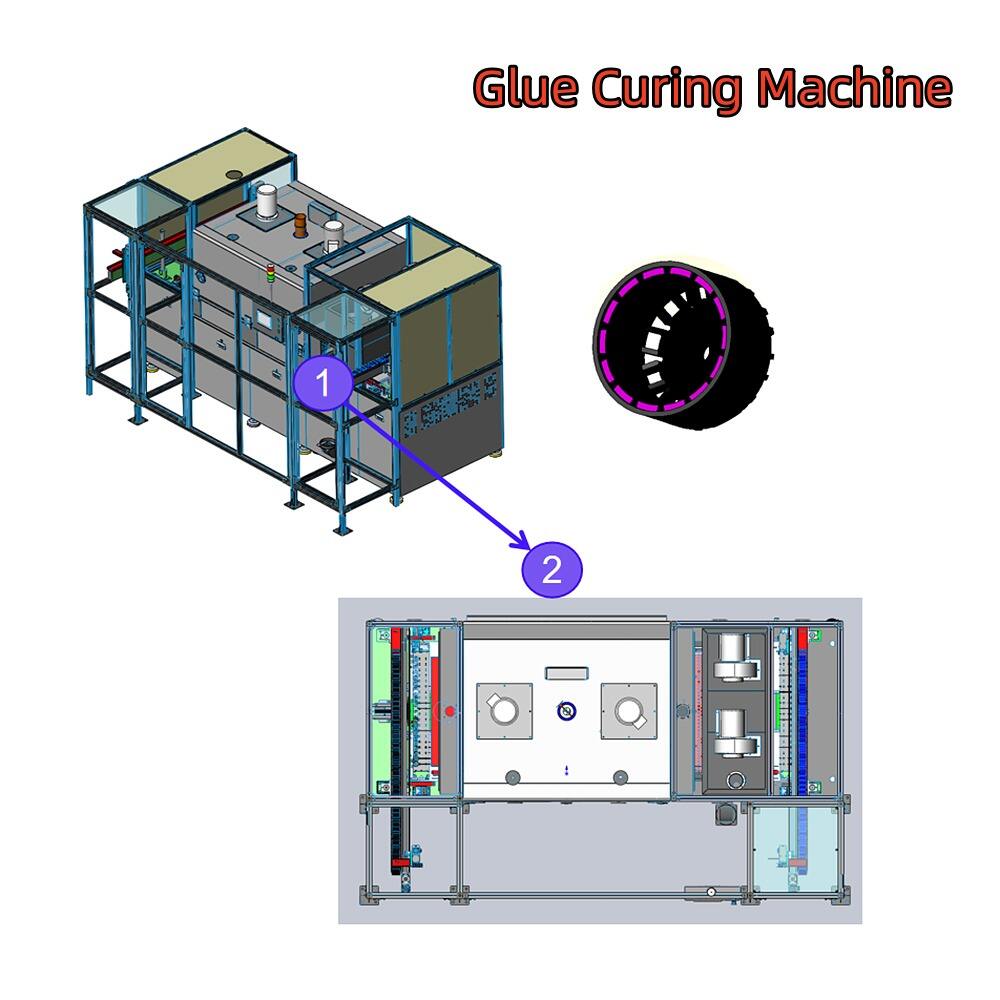

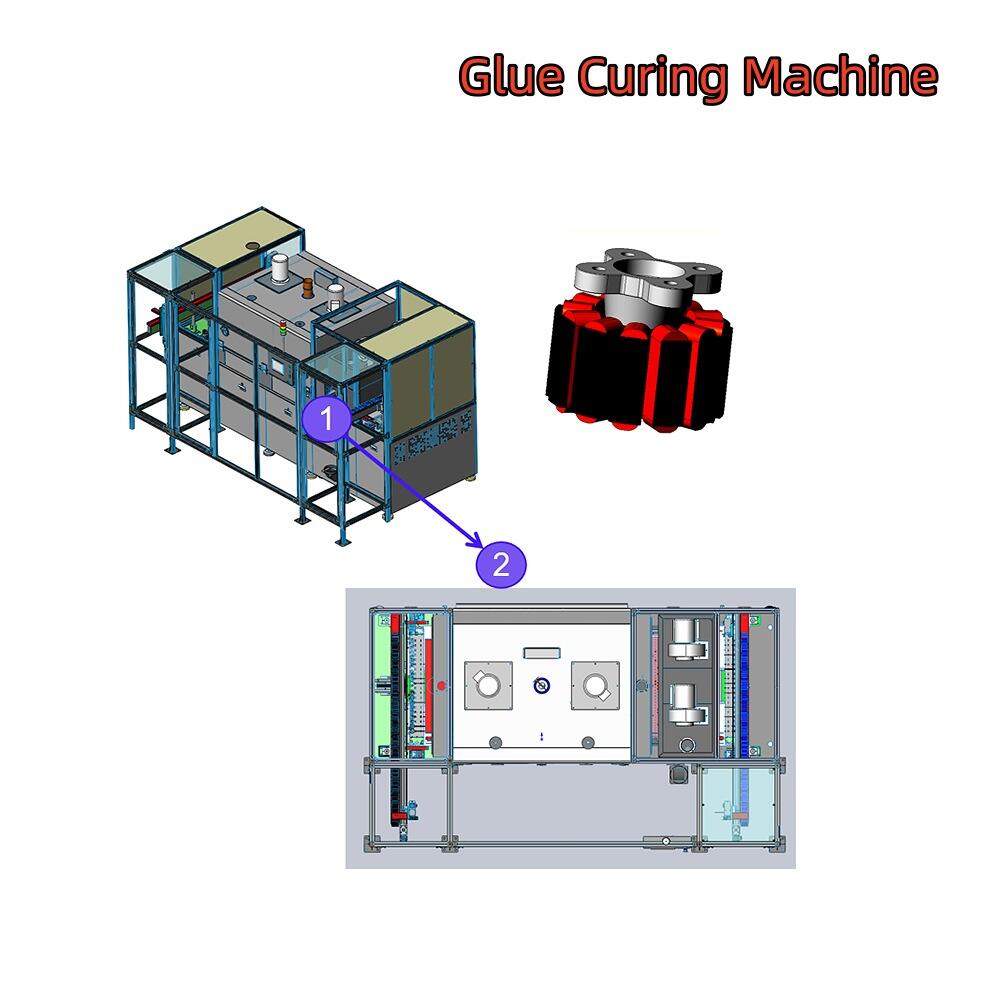

| OP020 | Glue Curing Machine | 1 | NBNL-R02 | Auto | |

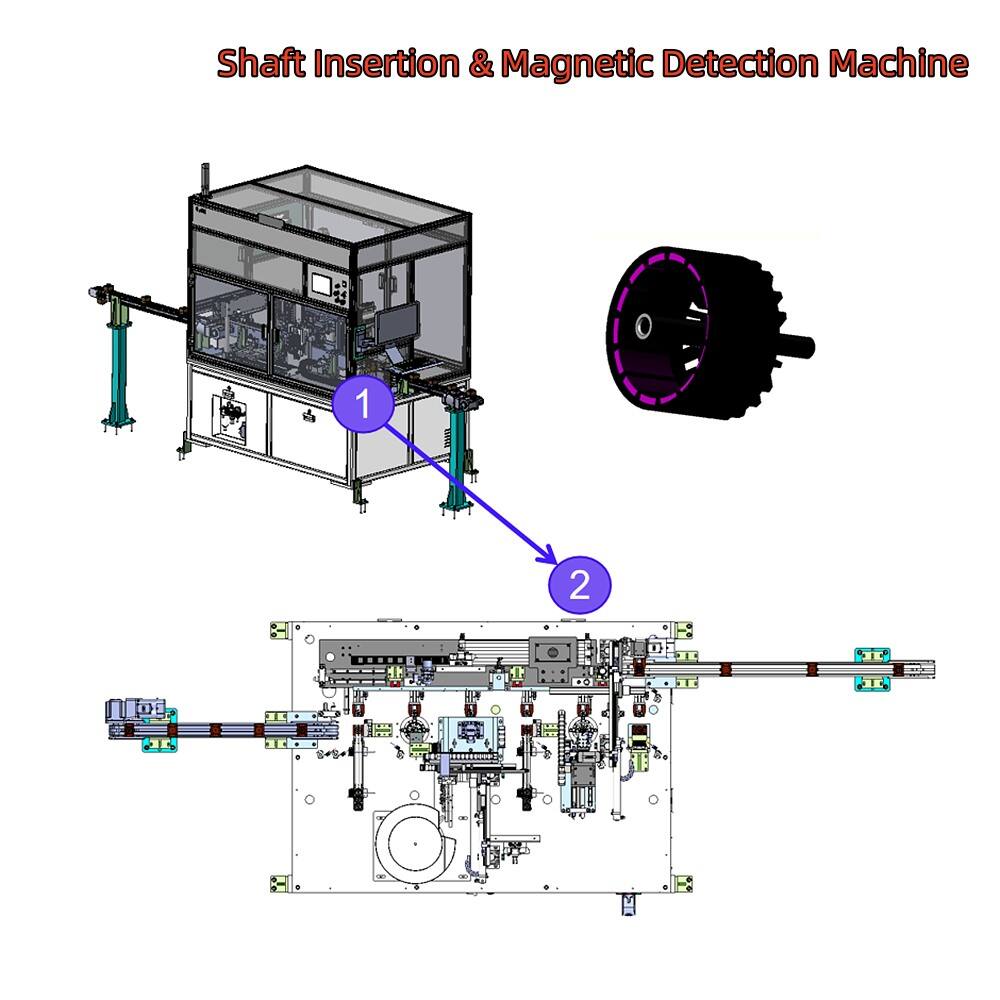

| OP030 | Shaft Insertion & Magnetic Detection Machine | 1 | NBNL-R03 | Auto | |

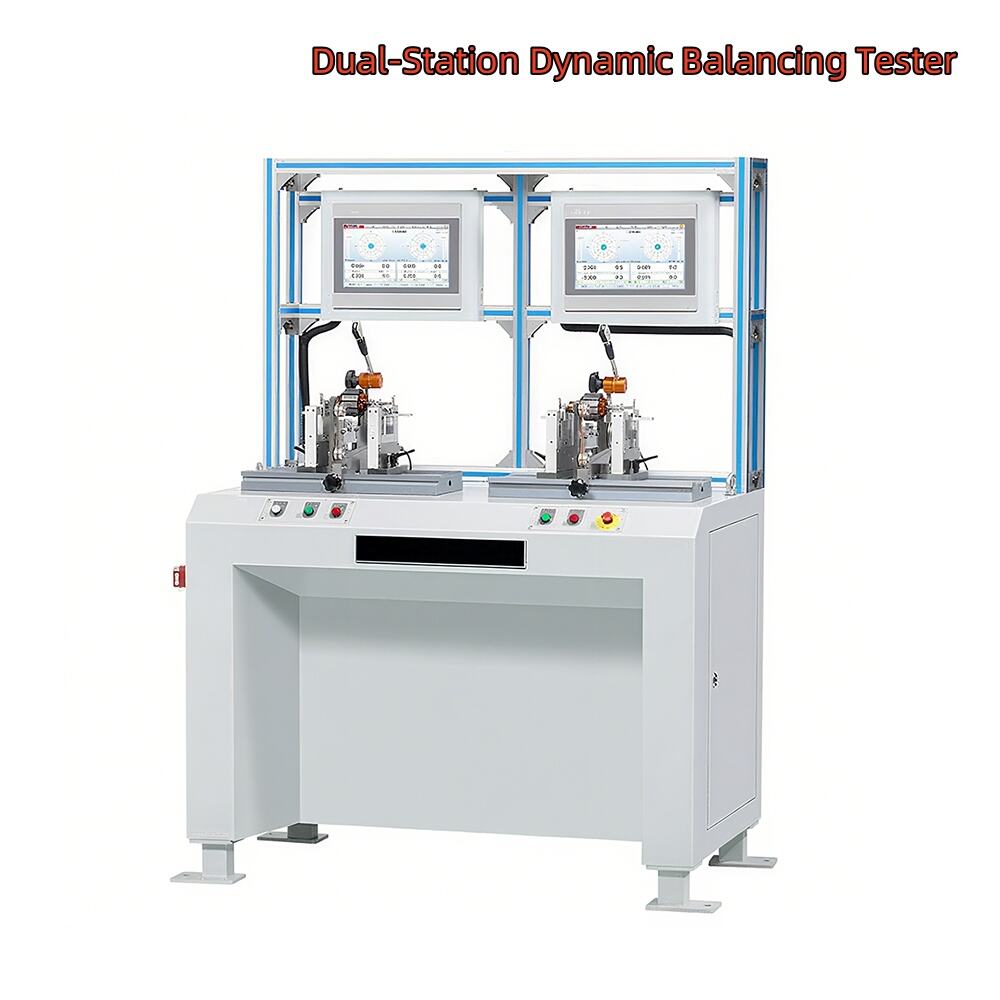

| OP040 | Dual-Station Dynamic Balancing Tester | 1 | NBNL-R04 | Semi Auto | 2 |

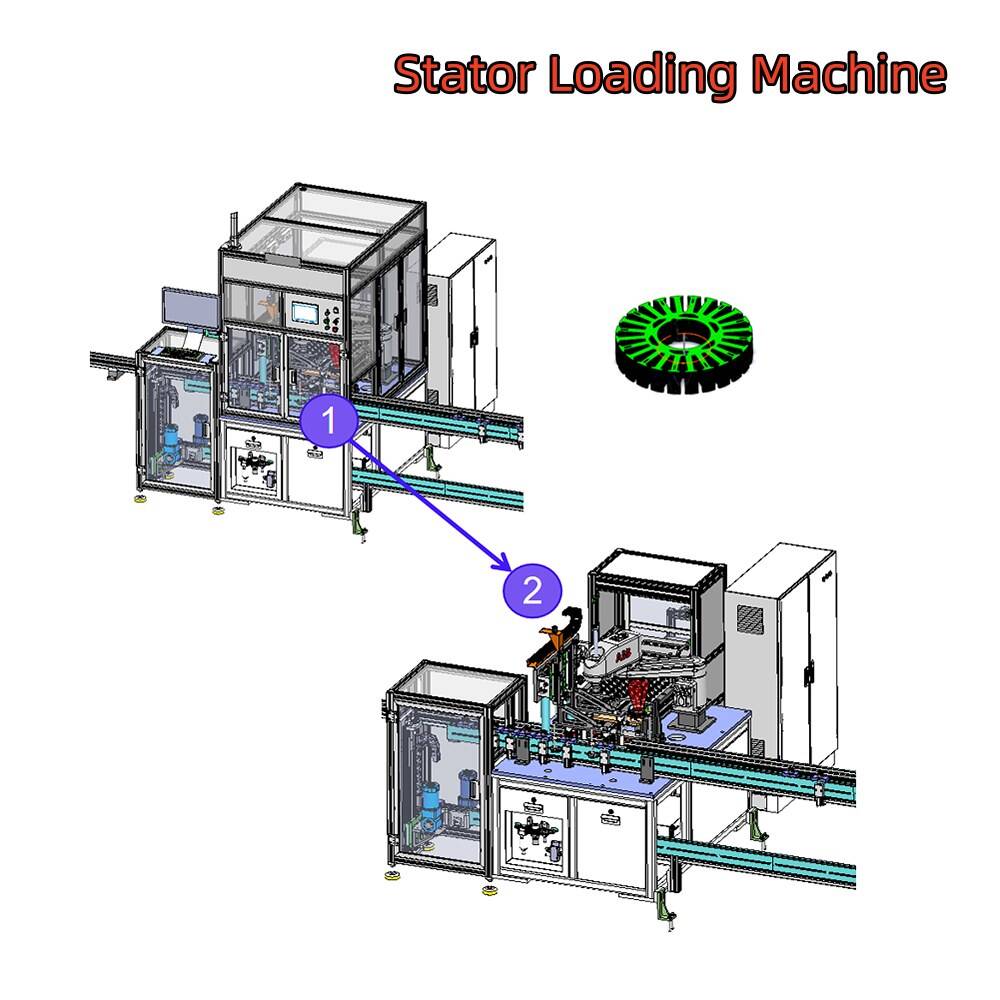

| OP050 | Stator Loading Machine(with Quick Line) | 1 | NBNL-S01 | Auto | |

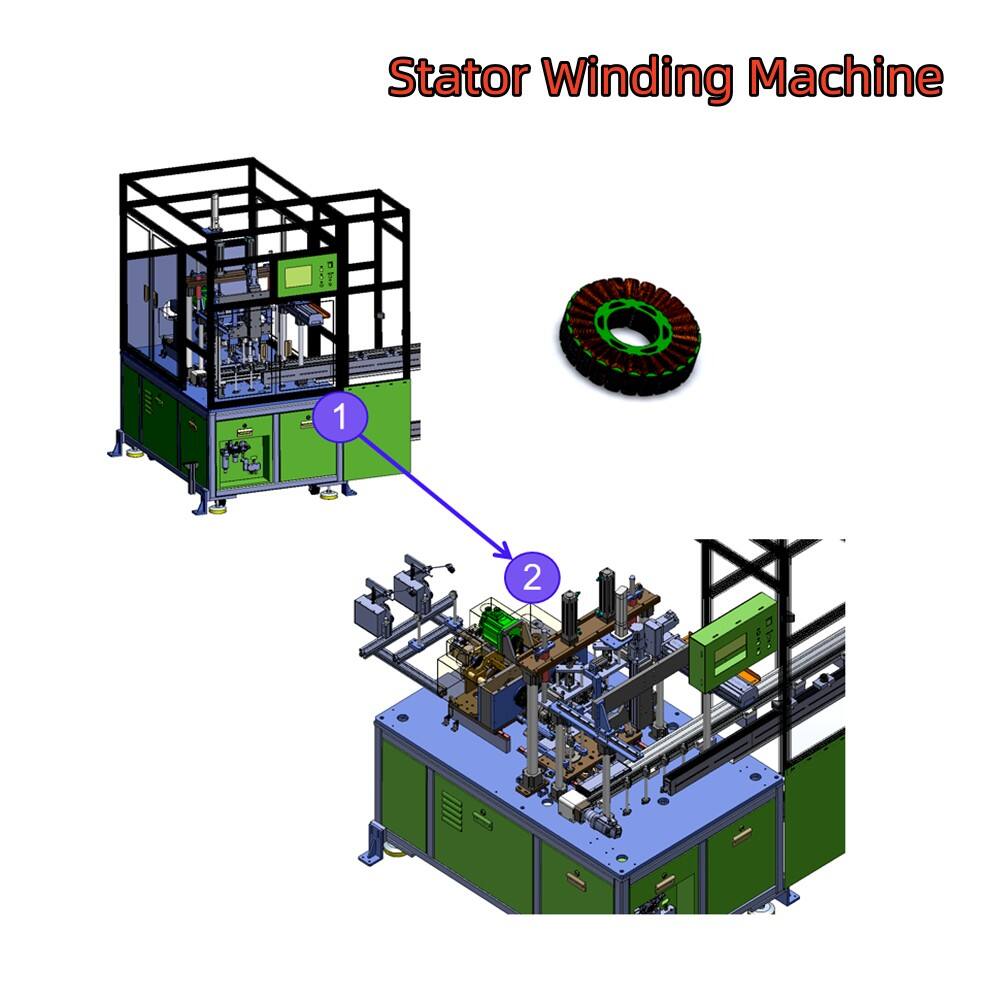

| OP060 | Stator Winding Machine | 4 | NBNL-S02 | Auto | |

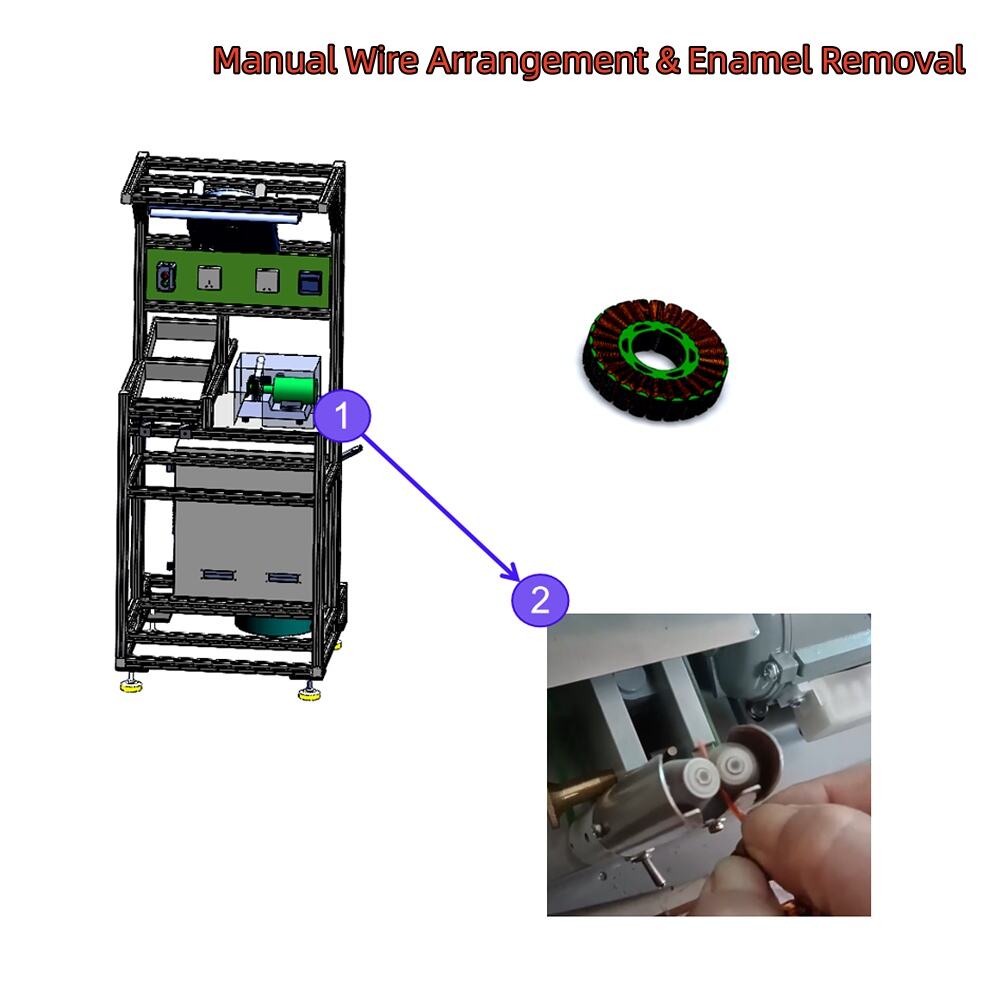

| OP070 | Manual Wire Arrangement & Enamel Removal | 2 | NBNL-S03 | Manual | 2 |

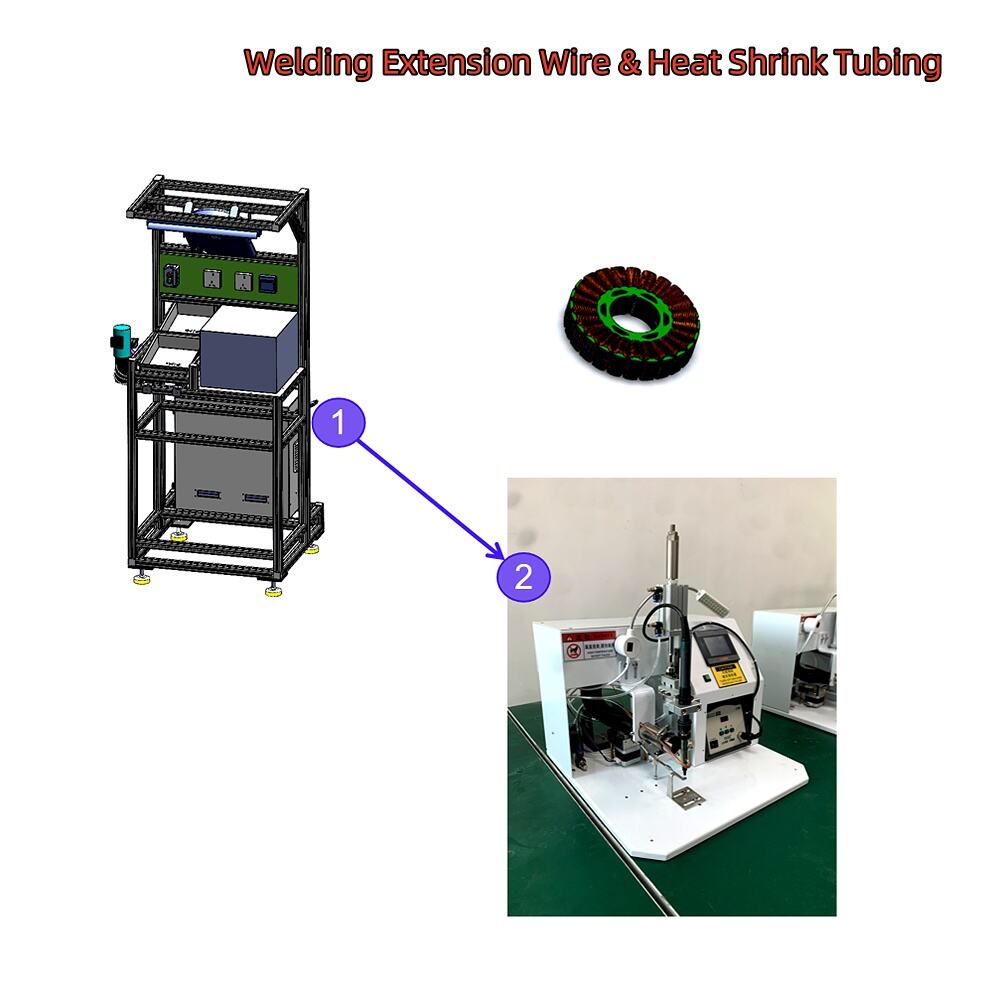

| OP080 | Welding Extension Wire & Heat Shrink Tubing | 2 | NBNL-S04 | Manual | 2 |

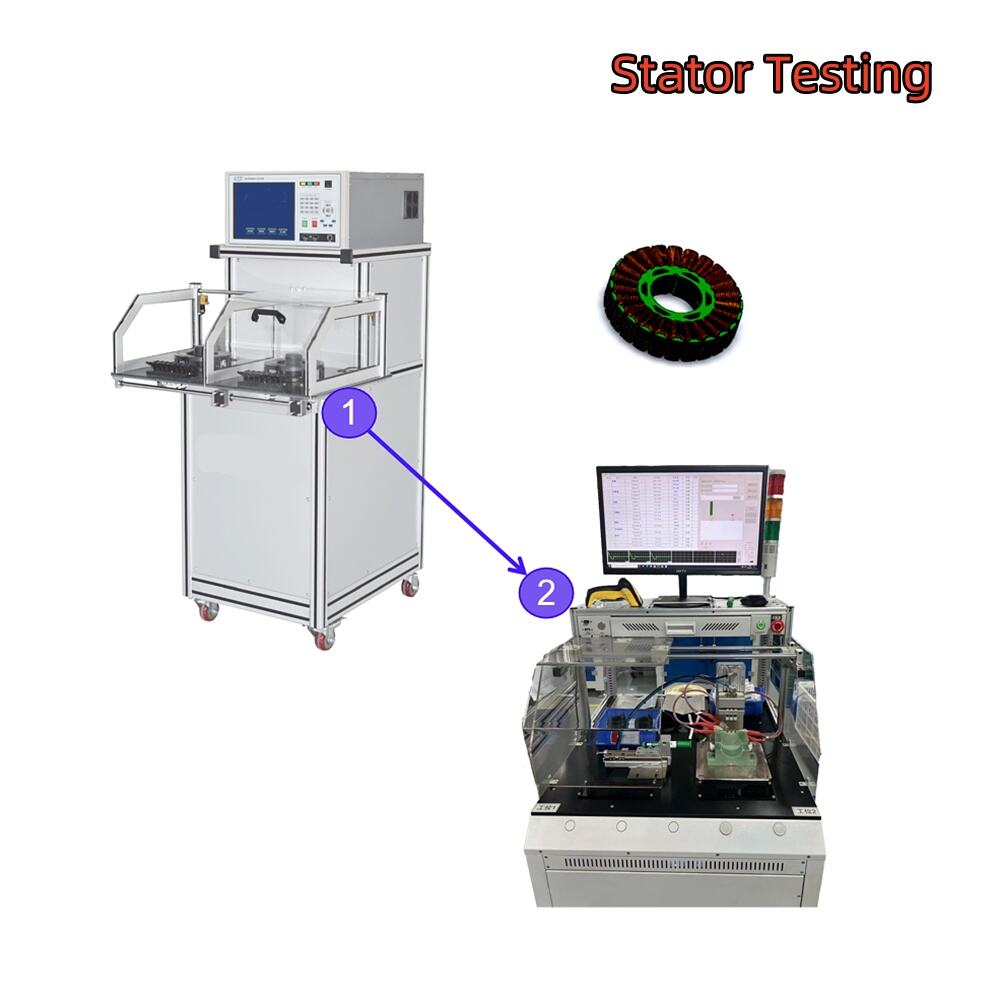

| OP090 | Stator Testing | 1 | NBNL-S05 | Semi Auto | 2 |

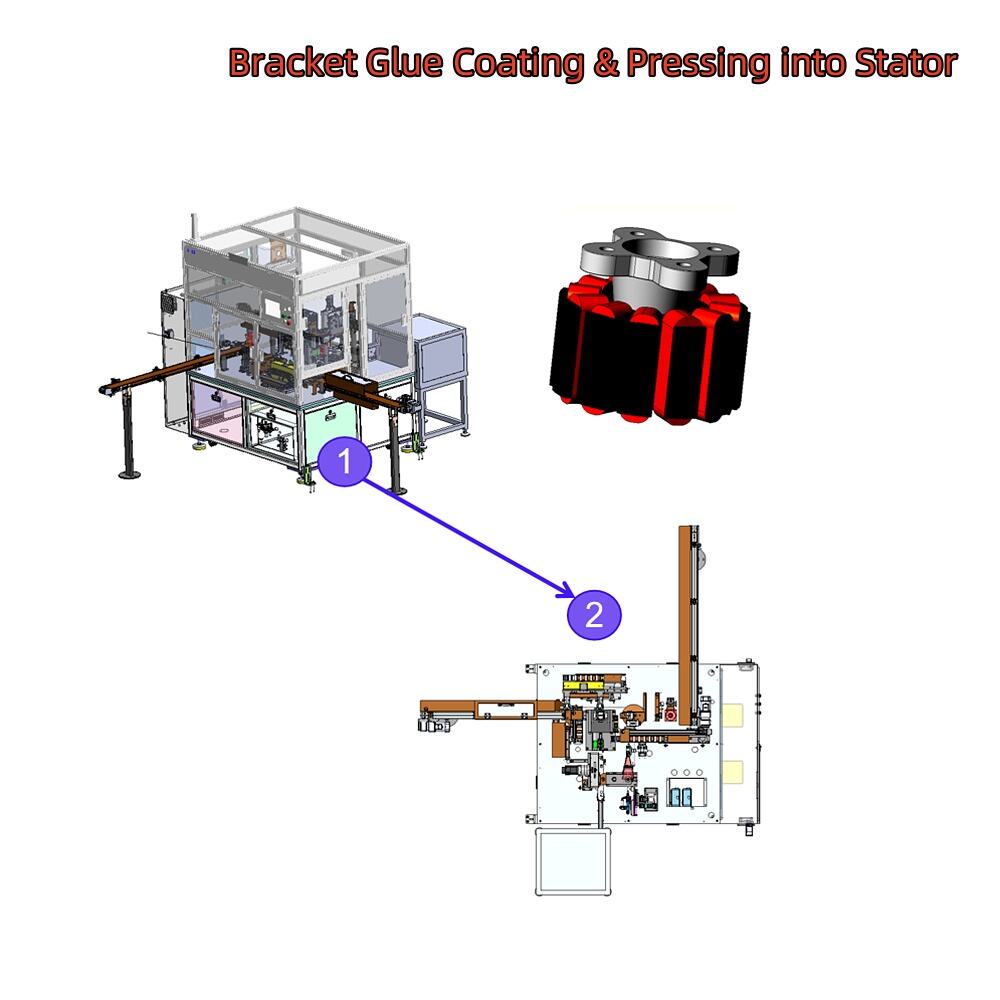

| OP100 | Bracket Glue Coating & Pressing into Stator | 1 | NBNL-S06 | Auto | |
| OP110 | Glue Curing Machine | 1 | NBNL-S07 | Auto | |

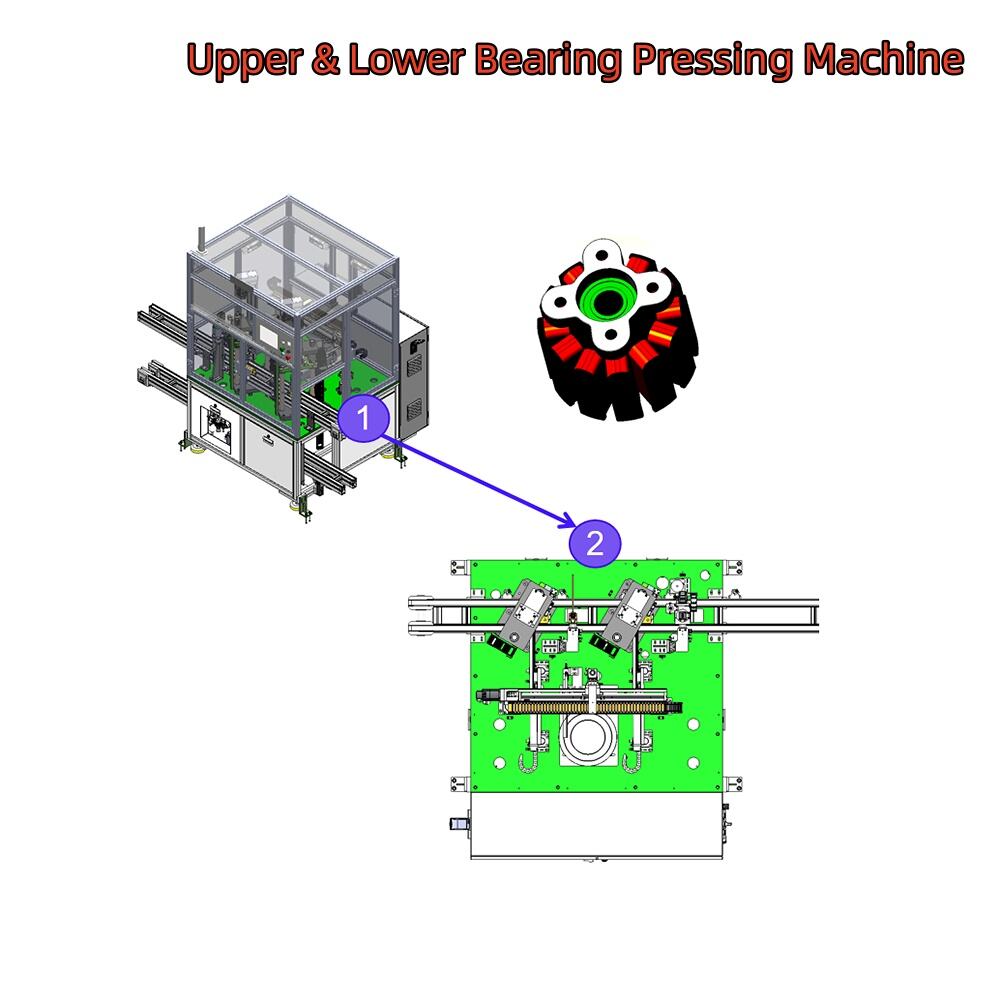

| OP120 | Upper & Lower Bearing Pressing Machine | 1 | NBNL-ZP01 | Auto | |

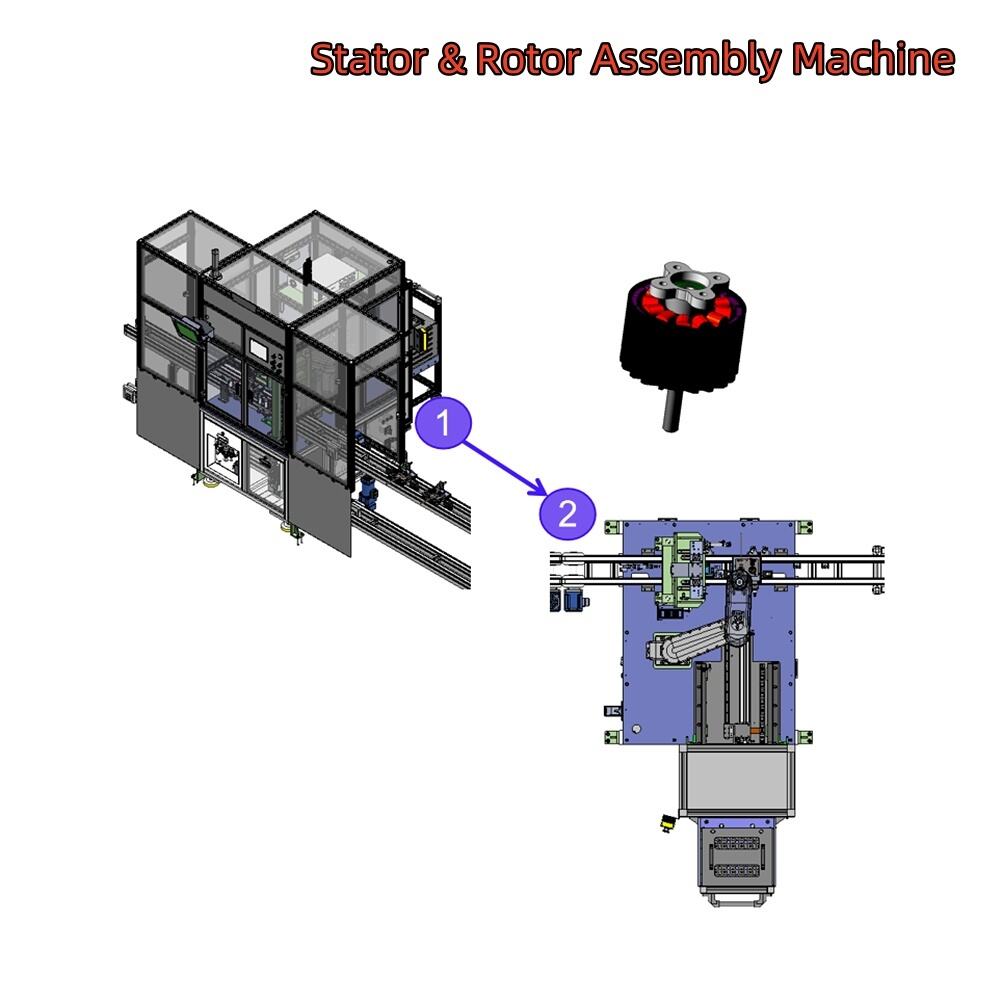

| OP130 | Stator & Rotor Assembly Machine | 1 | NBNL-ZP02 | Auto | |

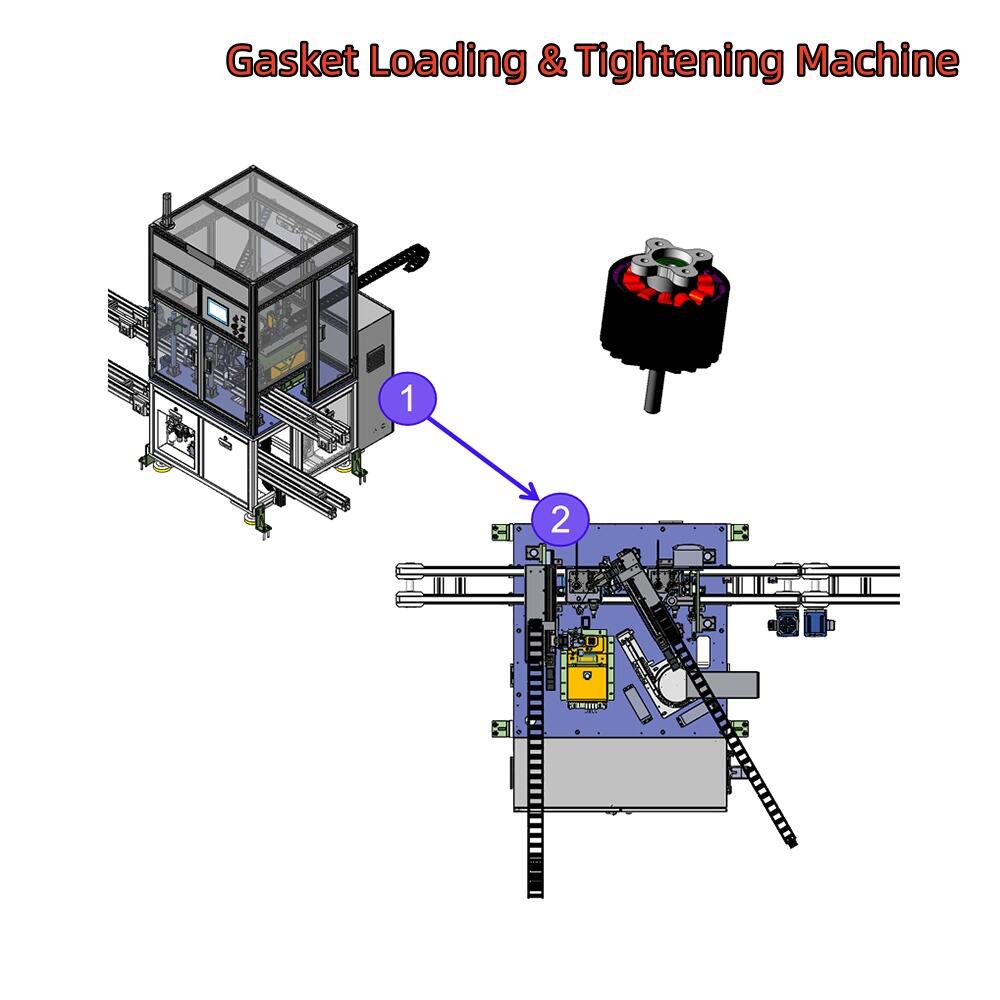

| OP140 | Gasket Loading & Tightening Machine | 1 | NBNL-ZP03 | Auto | |

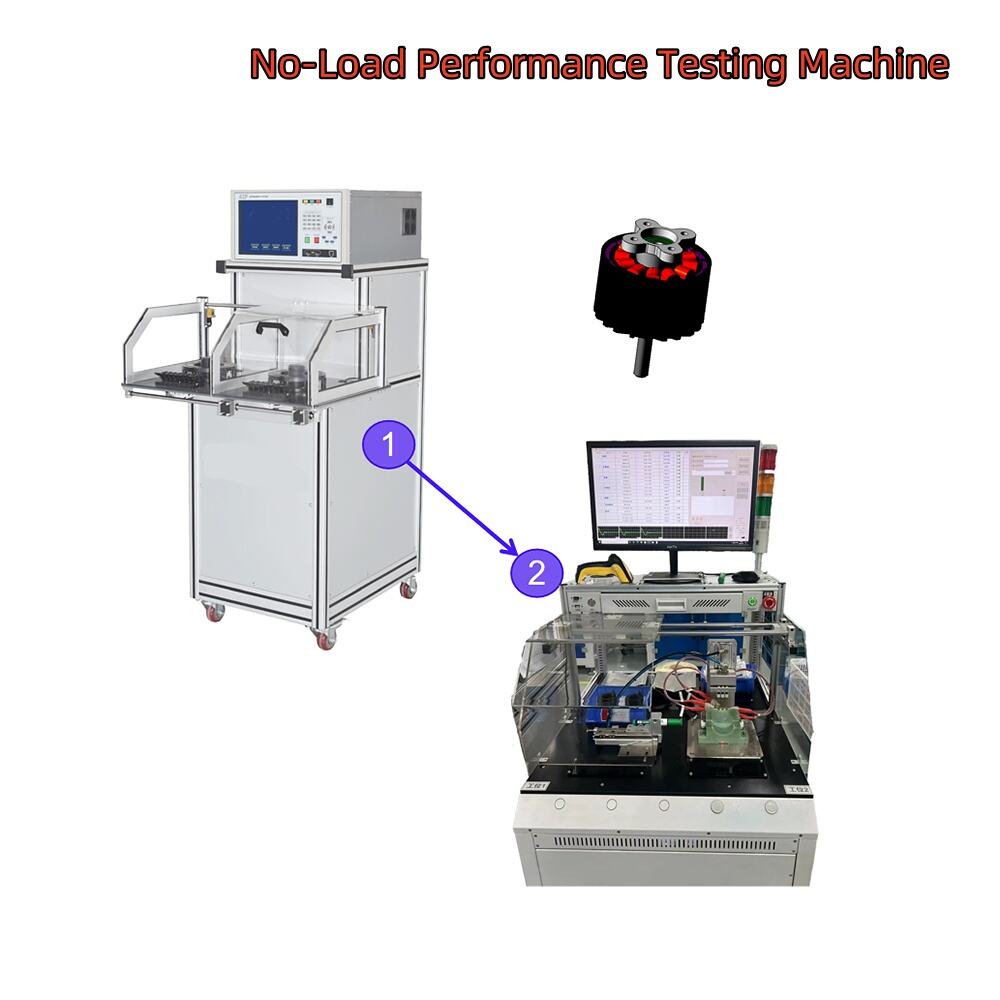

| OP150 | No-Load Performance Testing Machine | 1 | NBNL-ZP04 | Semi Auto | 1 |

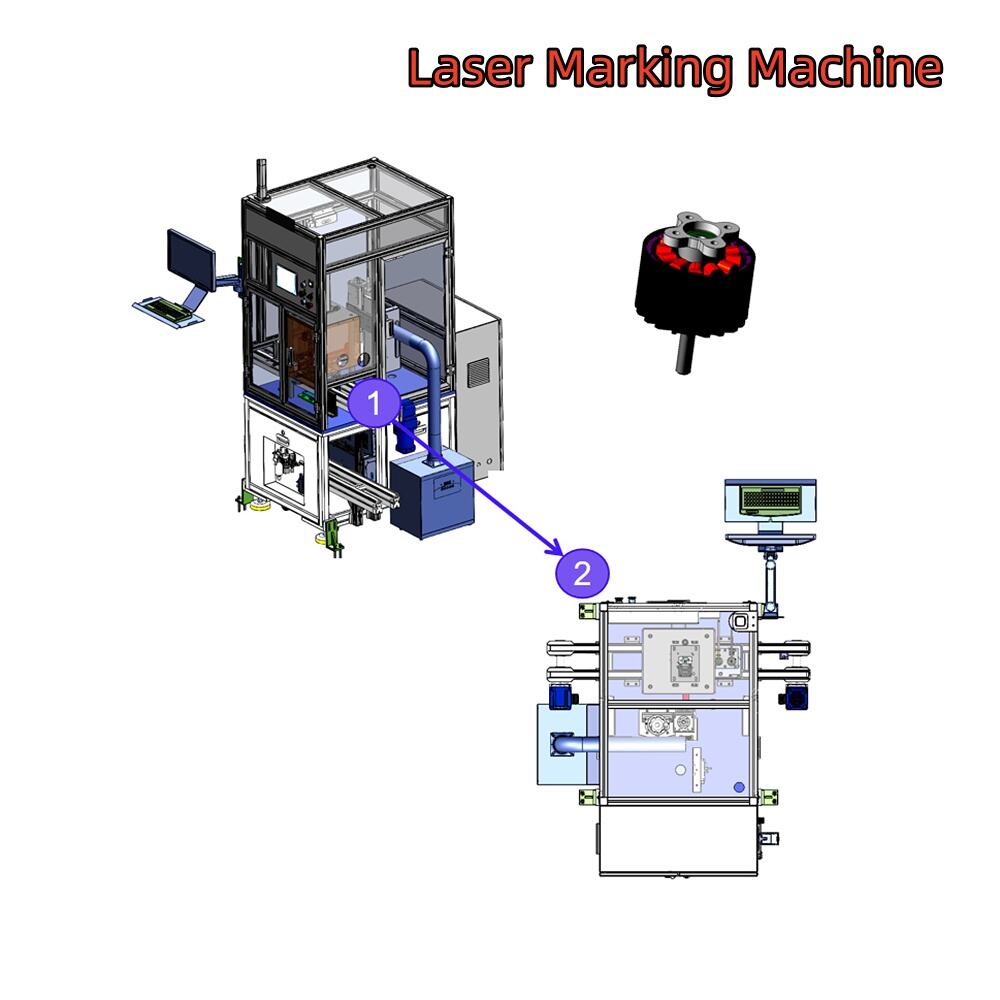

| OP160 | Laser Marking Machine | 1 | NBNL-ZP05 | Auto | |
| OP170 | Manual Unloading | 1 | NBNL-ZP06 | Manual | 1 |

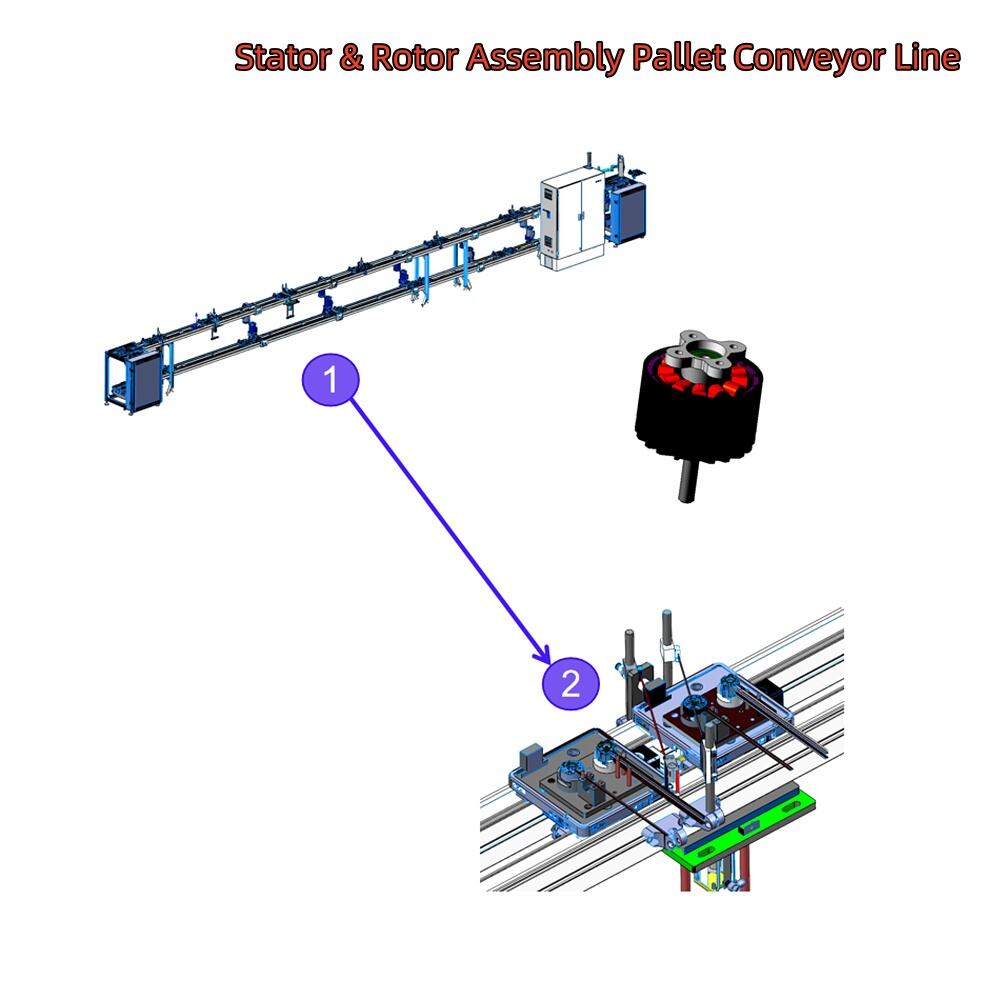

| OP180 | Stator & Rotor Assembly Pallet Conveyor Line | 1 | NBNL-ZP07 | Auto | |
| OP190 | MES System | 1 | NBNL-MES | Auto | |

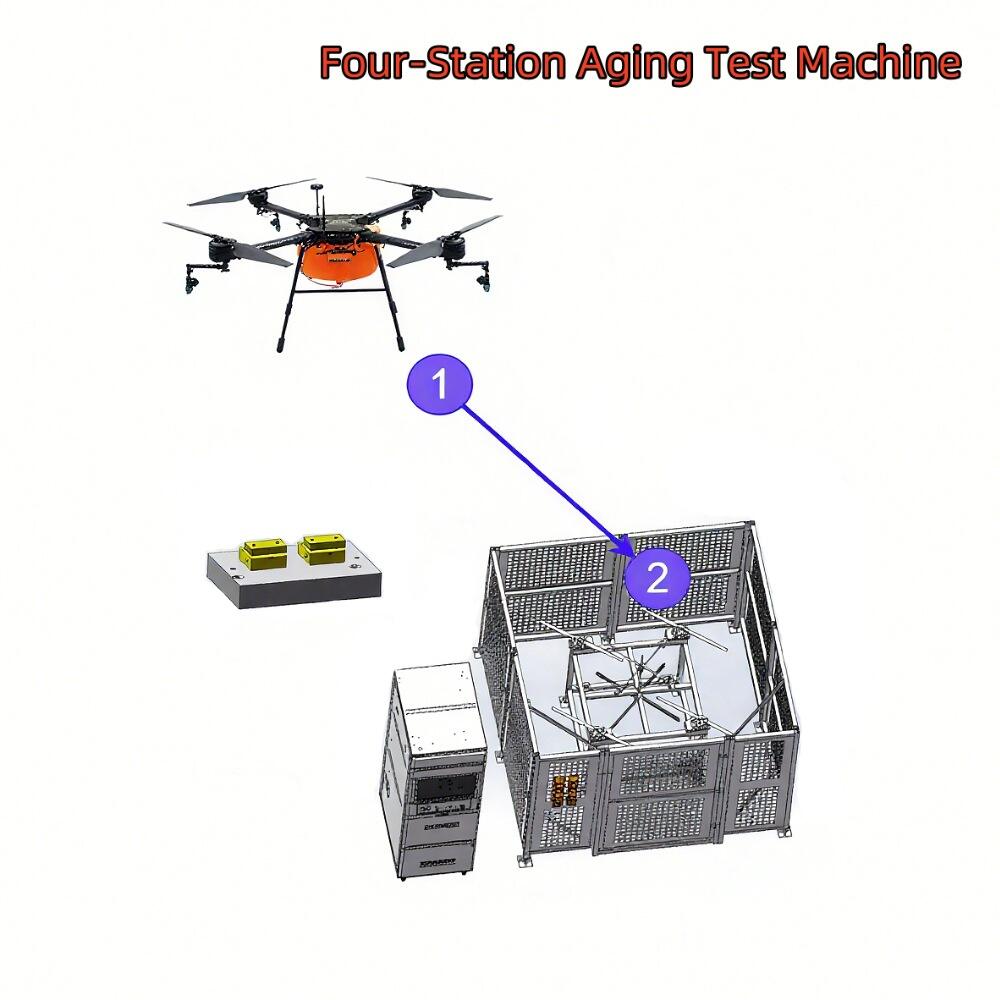

| OP200 | Four-Station Aging Test Machine | 1 | NBNL-ZP08 | Semi Auto | 1 |

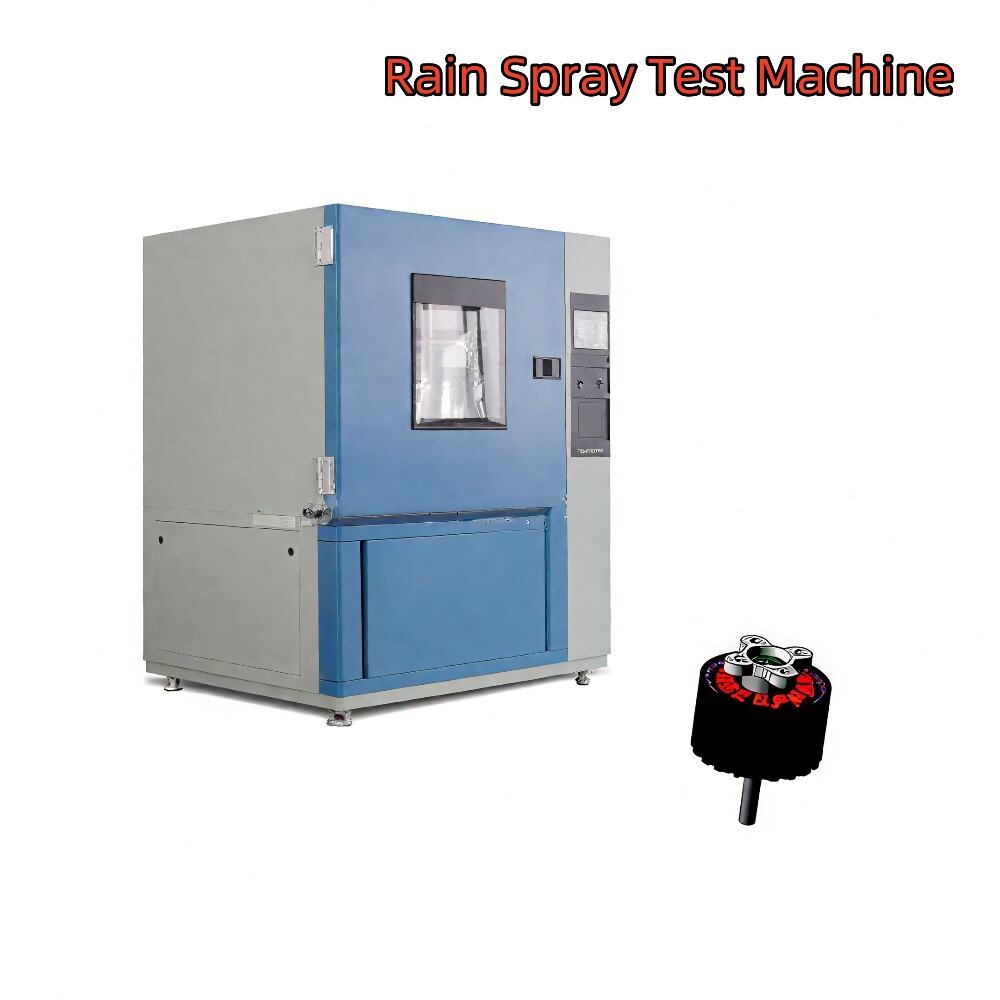

| OP210 | Rain Spray Test Machine | 1 | NBNL-ZP09 | Semi Auto | |

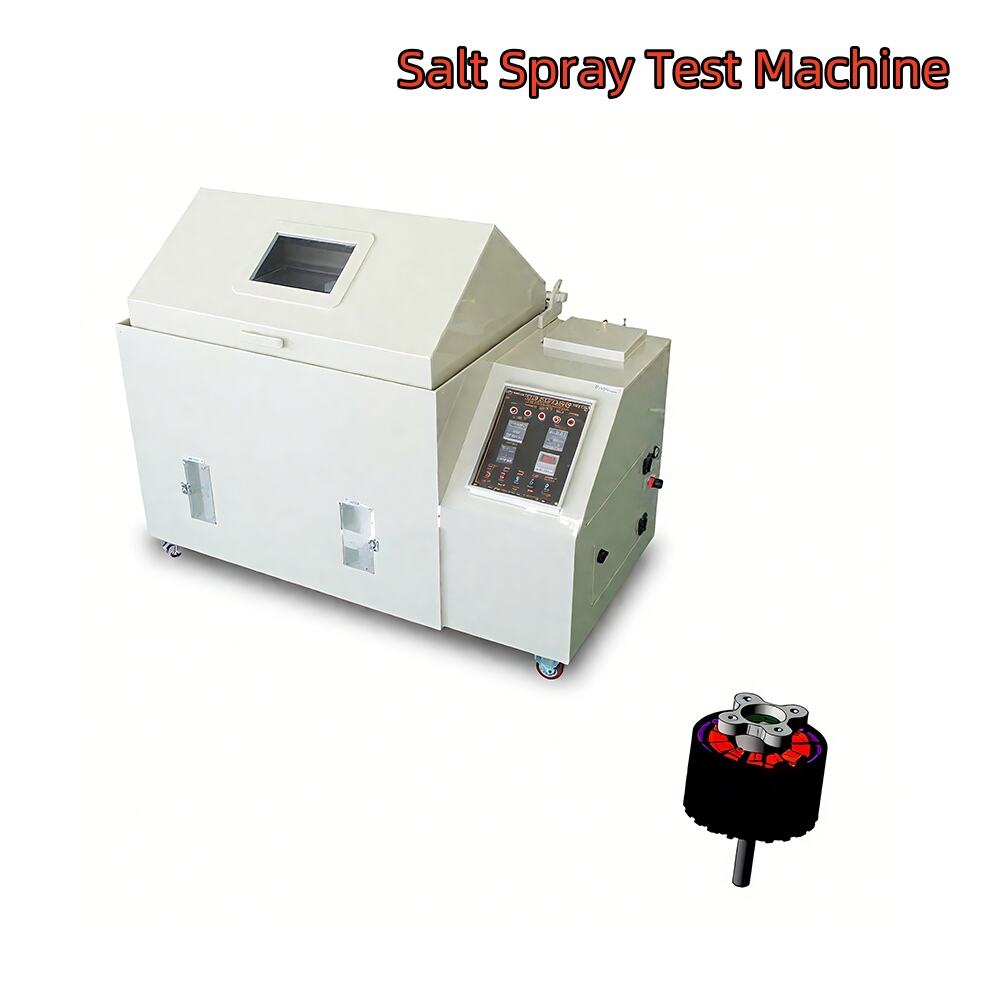

| OP220 | Salt Spray Test Machine | 1 | NBNL-ZP10 | Semi Auto | |
| OP230 | Single-Station Slurry Dynamic Testing Machine(10KG) | 1 | NBNL-ZP11 | Semi Auto |
