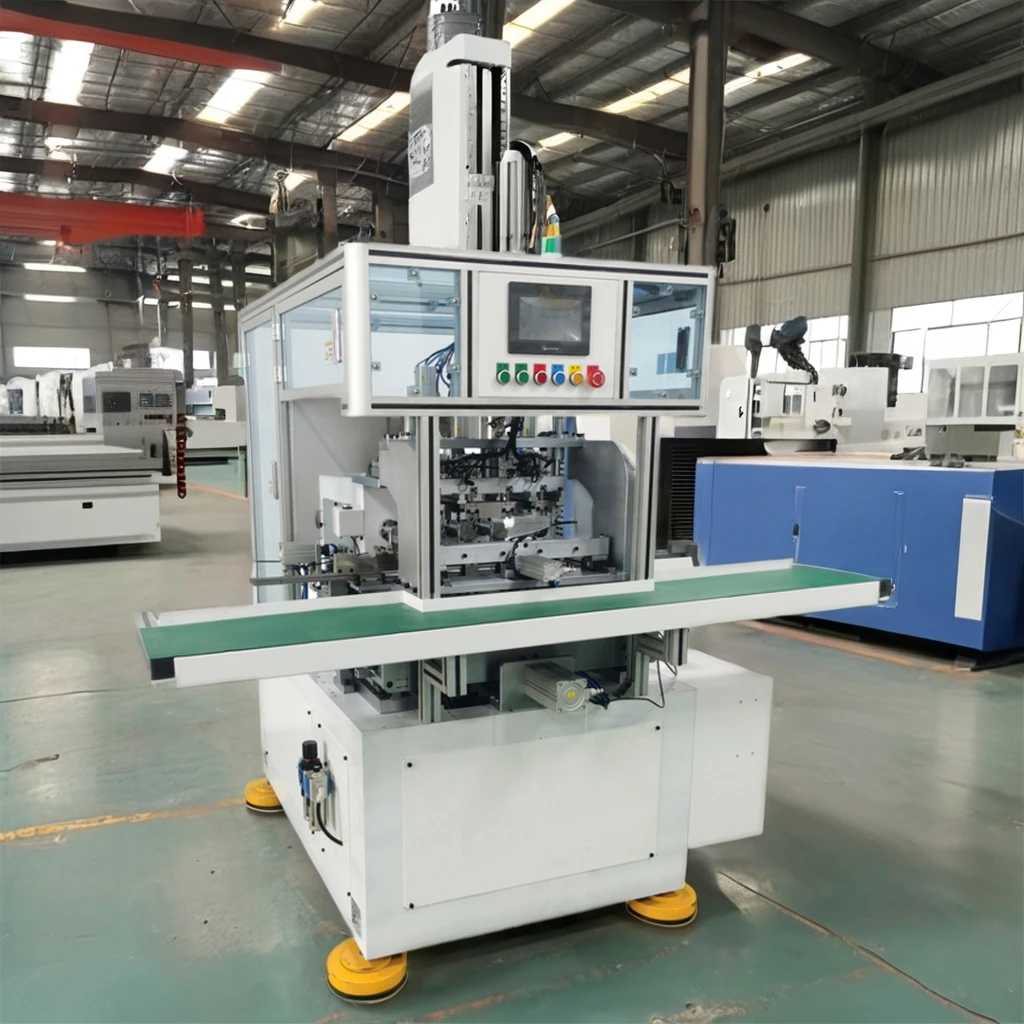

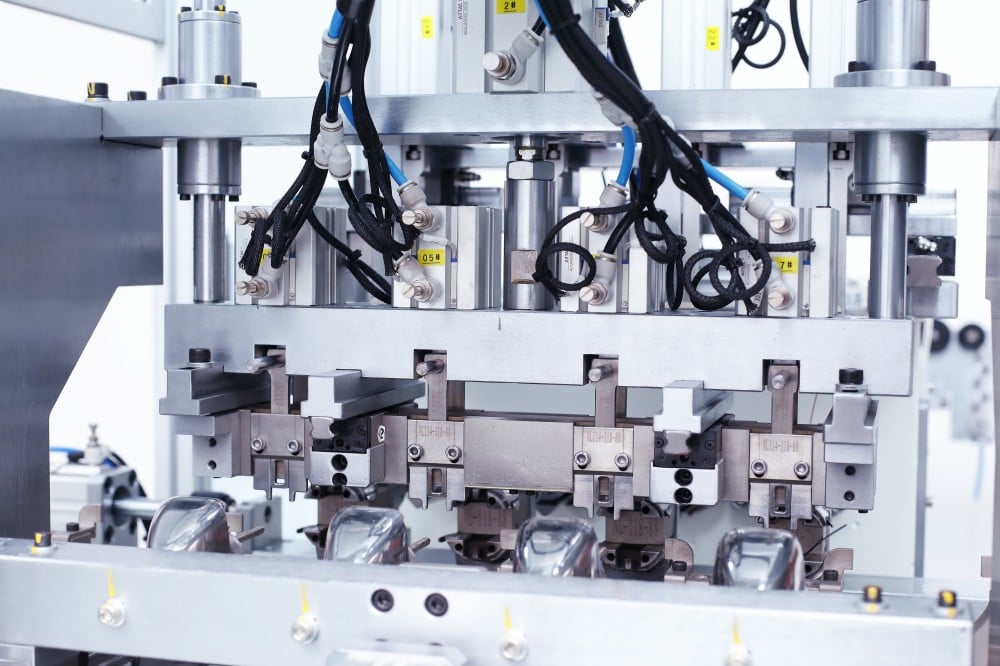

This equipment is widely applicable for internal winding of stators in two-pole series motors and shaded-pole motors. These motors are primarily used in industries such as power tools, household appliances, and garden machinery. Designed for production, the equipment supports simultaneous 4-axis winding. Its mechanical transmission system enables linear and oscillating motion trajectories within the chassis, while both the chassis and machine body are constructed from castings to minimize vibration and shaking during operation. Equipped with PLC program control and a 7-inch touchscreen display, the equipment achieves 1 out 4 automated winding, wire cutting & clamping in an integrated workflow.
| Input Voltage | AC 380V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 5.0 kW |
| Equipment Weight | Approximately 2000 kg |
| Overall Dimensions | 1500 × 1500 × 1800 mm (L × W × H) |
| Product Range | Ф45–Ф95 mm, Stack Height: 15–60mm (Customizable) |
| Wire Diameter Range | Ф0.2–Ф1.0 mm |
