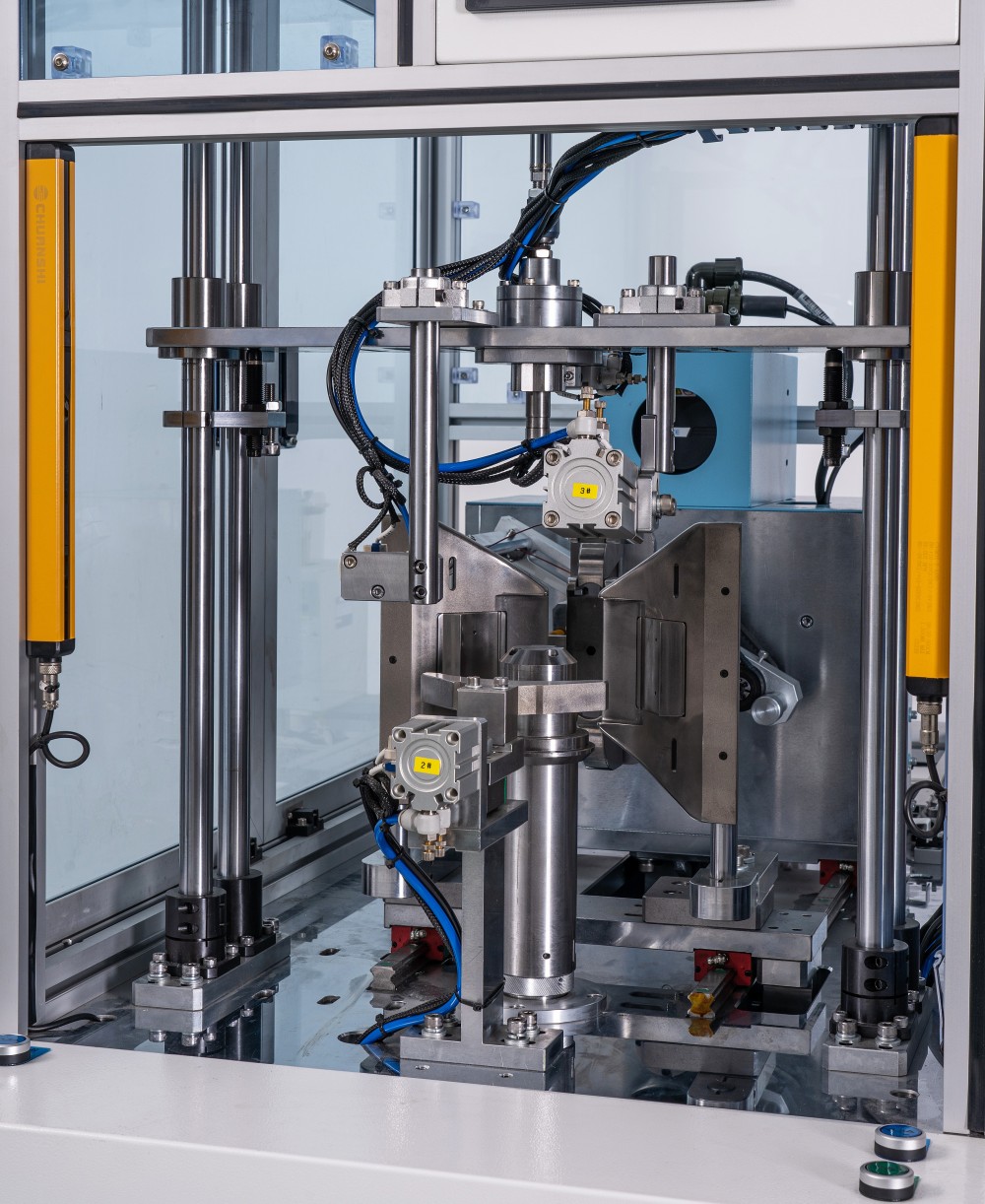

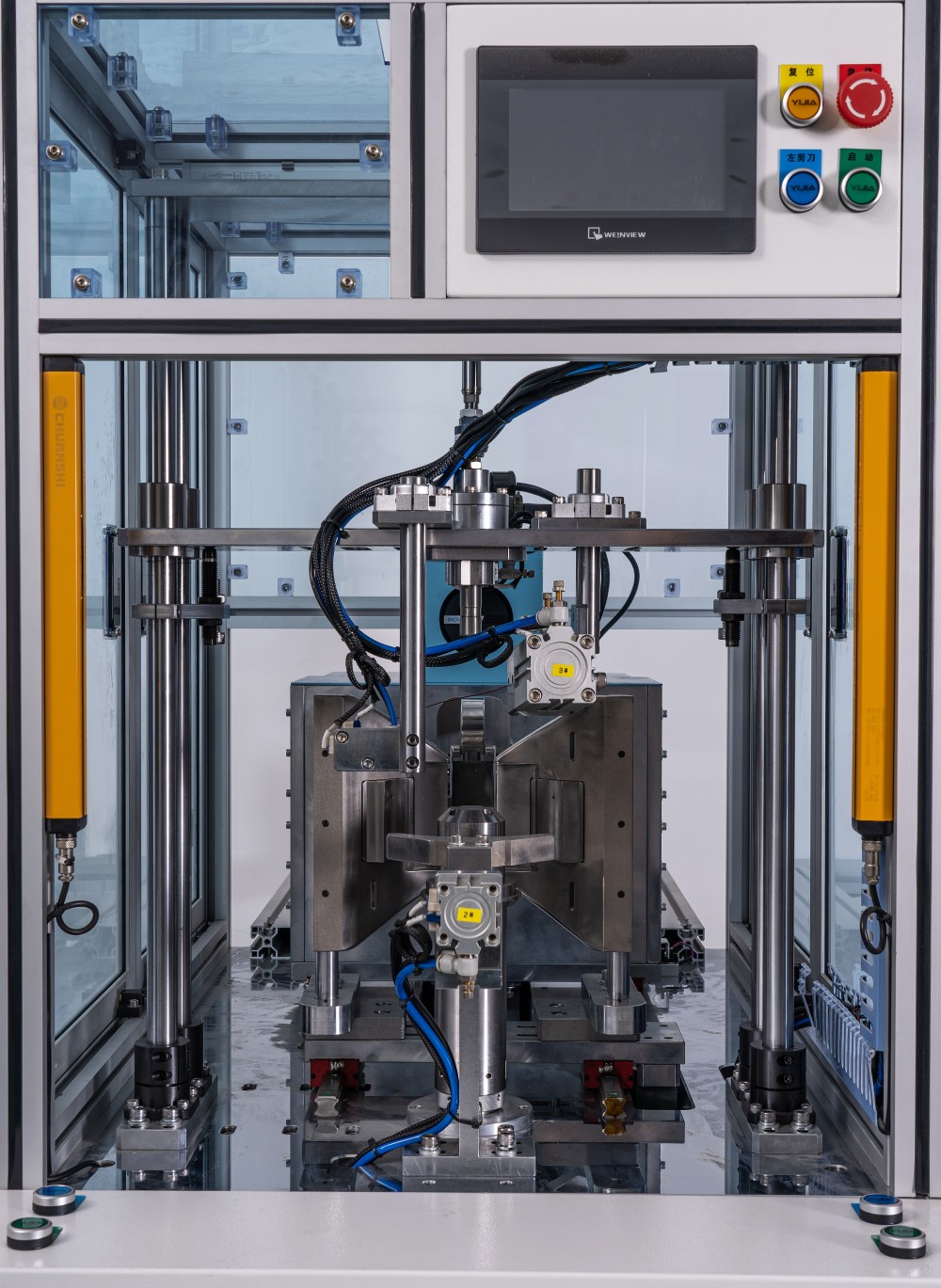

This equipment is widely applicable to outer stator winding of brushless motors, which are mainly used in industries such as household motors, automotive pumps, model aircraft motors, and industrial motors. Specifically designed to handle fine wires, thick wires, single-strand wires, and multi-strand wires, it aims to enhance the power output and quality requirements of customer products. The equipment adopts Delta (Panasonic) 4-axis servo system, programmable control system, 7-inch touch screen display, and realizes 1-out-1 automatic winding, wire cutting & clamping, and integrated operation.
| Input Voltage | AC 220V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 3.5 kW |
| Equipment Weight | Approximately 800 kg |
| Overall Dimensions | 700 × 1700 × 1700 mm (L × W × H) |
| Product Range | Ф20–Ф100 mm, Stack Height: 10–100mm (Customizable) |
| Wire Diameter Range | Ф0.2–Ф1.4 mm |
| Feeding Method | Manual |
