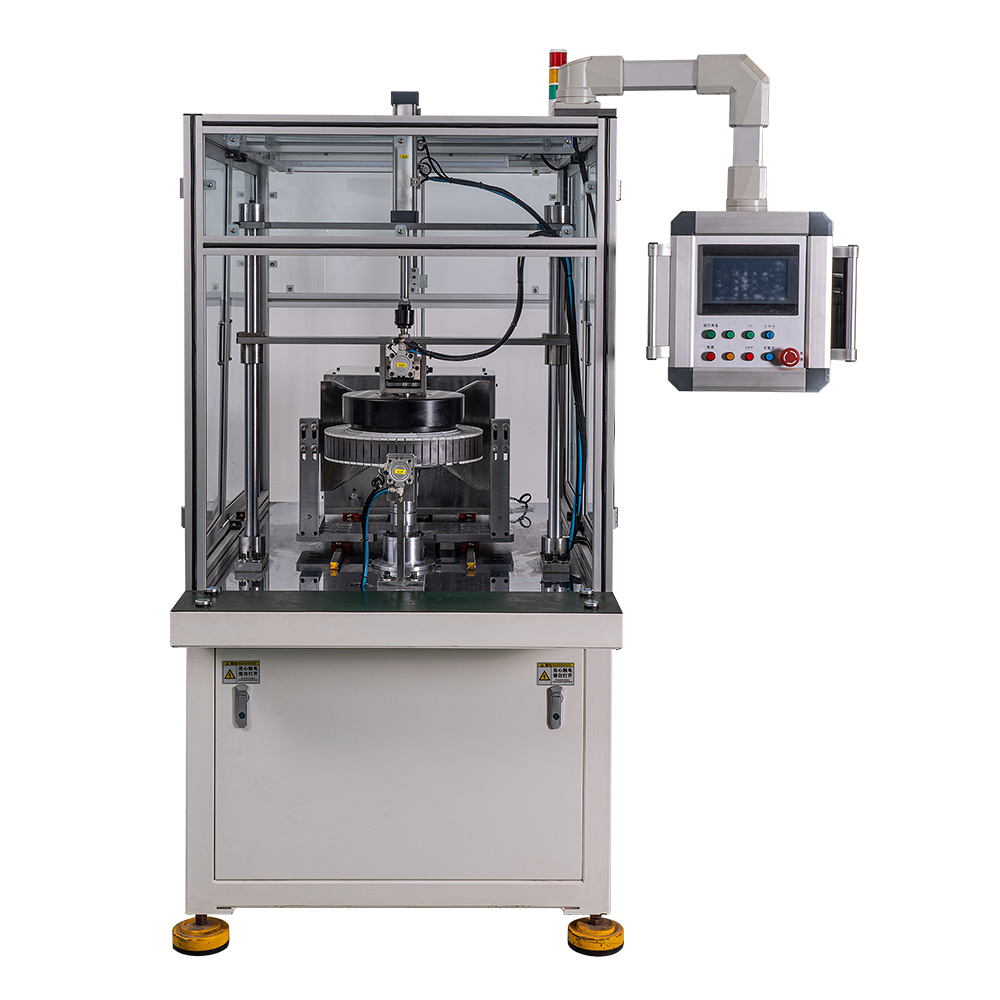

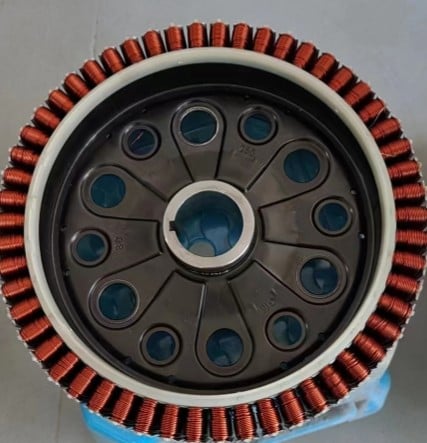

This equipment is widely applicable to outer stator winding of brushless motors, which are mainly used in industries such as industrial fans, electric vehicles, and motor manufacturing. The system supports various wire specifications including fine/thick wires, single/multi-strand conductors and large outer diameter windings to enhance power output and meet stringent quality requirements. The equipment features Delta (Panasonic) 4-axis servo system, programmable control system, 7-inch touch screen display, and integrates 1-out-1 automatic winding, wire cutting & clamping functions.
| Input Voltage | AC 220V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 4.0 kW |
| Equipment Weight | Approximately 600 kg |
| Overall Dimensions | 900 × 1900 × 1900 mm (L × W × H) |
| Product Range | Ф20–Ф350 mm, Stack Height: 40–75mm (Customizable) |
| Wire Diameter Range | Ф0.3–Ф1.2 mm |
| Feeding Method | Manual |
