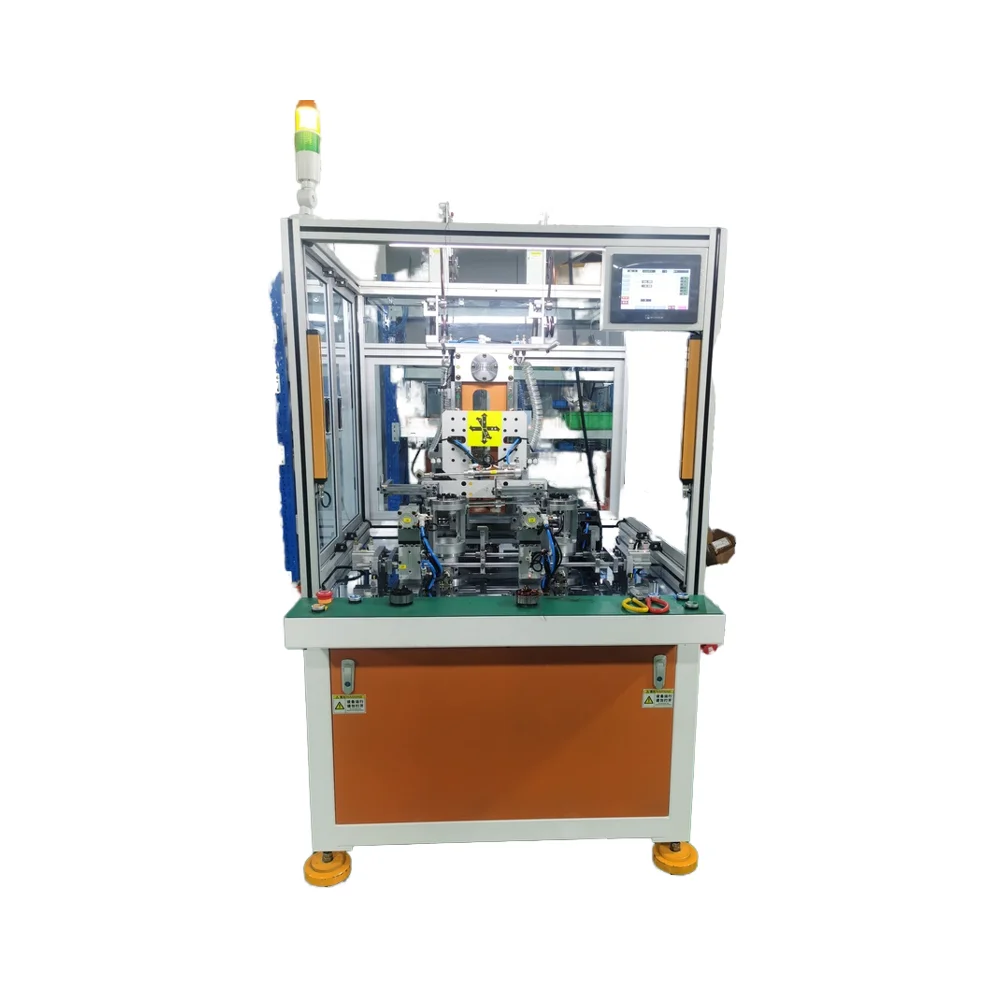

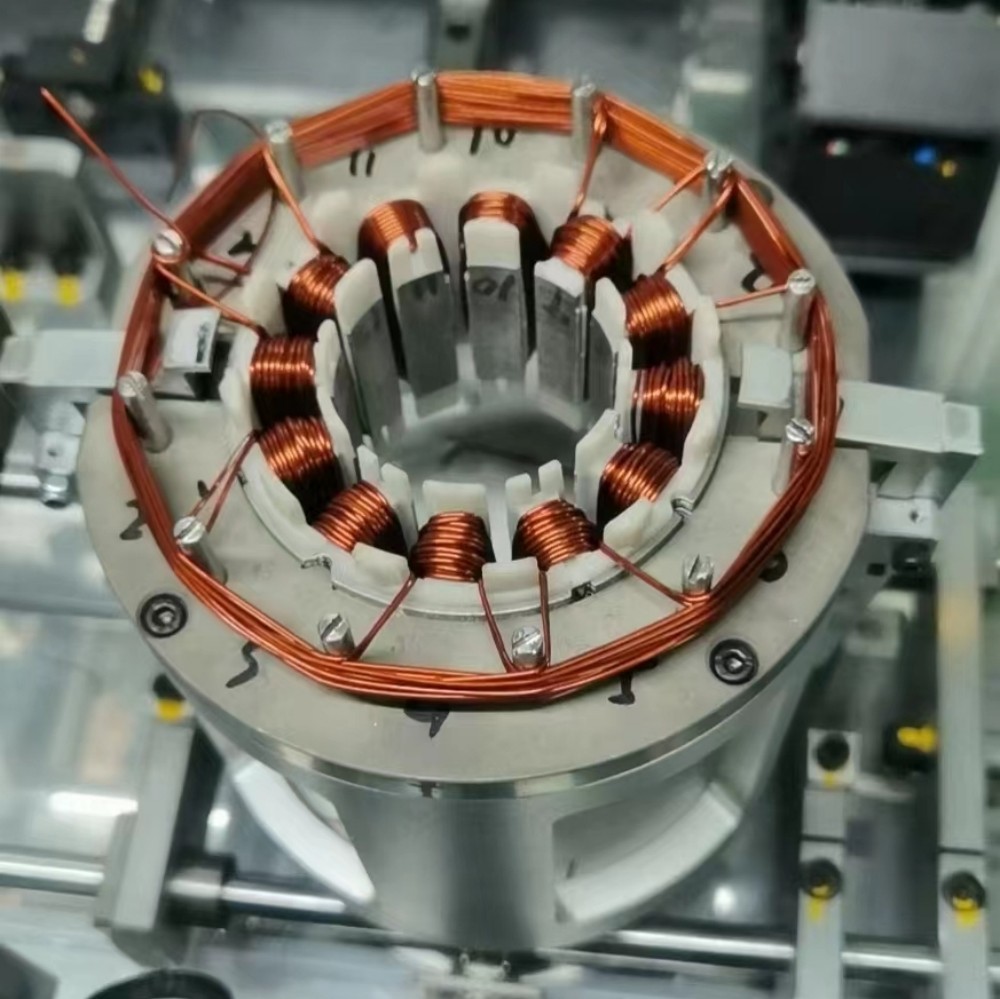

This equipment is widely applicable to stator winding of brushless inner-rotor motors, which are mainly used in industries such as power tool motors, automotive pumps, and industrial motors. Designed to handle both fine and thick wires with zero wire damage, low vibration, and high-speed operation, it enhances the power output, quality, and efficiency of customer products. It adopts Delta (Panasonic) 5-axis servo system, programmable control system, servo tension, touch screen display, and realizes 1-out-2 automatic winding, wire cutting & clamping, and integrated operation.
| Input Voltage | AC 380V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 11 kW |
| Equipment Weight | Approximately 800 kg |
| Overall Dimensions | 1300 × 1300 × 1800 mm (L × W × H) |
| Product Range | Ф20–Ф100 mm, Stack Height: 10–80mm (Customizable) |
| Wire Diameter Range | Ф0.15–Ф1.2 mm |
| Maximum Stroke | 120 mm |
| Feeding Method | Manual |
