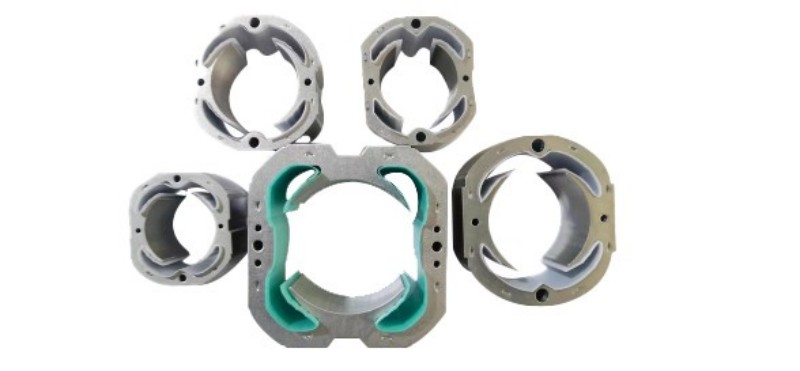

This equipment is widely applicable to paper insertion for stators of two-pole series motors and shaded-pole motors, with these motors mainly used in industries such as tools, household appliances, and garden machinery. The equipment is designed for production purposes, supporting horizontal paper insertion, piecewise paper forming, and automatic belt-conveyor loading/unloading. Equipped with PLC program control and a 7-inch touchscreen display, it realizes integrated automatic loading/unloading and paper insertion operations in one complete process.
| Input Voltage | AC 220V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 1.6 kW |
| Equipment Weight | Approximately 800 kg |
| Overall Dimensions | 600 × 800 × 1500 mm (L × W × H) |
| Product Range | Ф45–Ф95 mm, Stack Height: 15–65mm (Customizable) |
| Paper Thickness Range | 0.18-0.5 mm |
