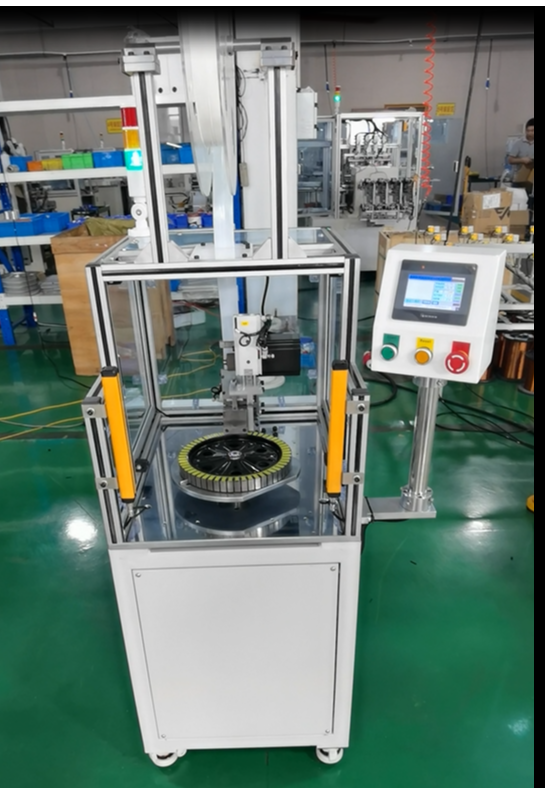

This equipment is widely used for inserting insulation paper into the stator slots of brushless motors, primarily applied in electric motors, automotive pumps, model aircraft motors, and industrial motors. Designed specifically for brushless motor stator paper insertion, it enhances the adhesion between slot paper and the stator while ensuring simple and convenient operation. It adopts Inovance servo system, PLC control system, and a 7-inch touch screen display.
| Input Voltage | AC 220V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 1.5 kW |
| Equipment Weight | Approximately 600 kg |
| Overall Dimensions | 650 × 510 × 1900 mm (L × W × H) |
| Product Range | Ф80–Ф320 mm, Stack Height: 30–85mm (Customizable) |
| Feeding Method | Manual |

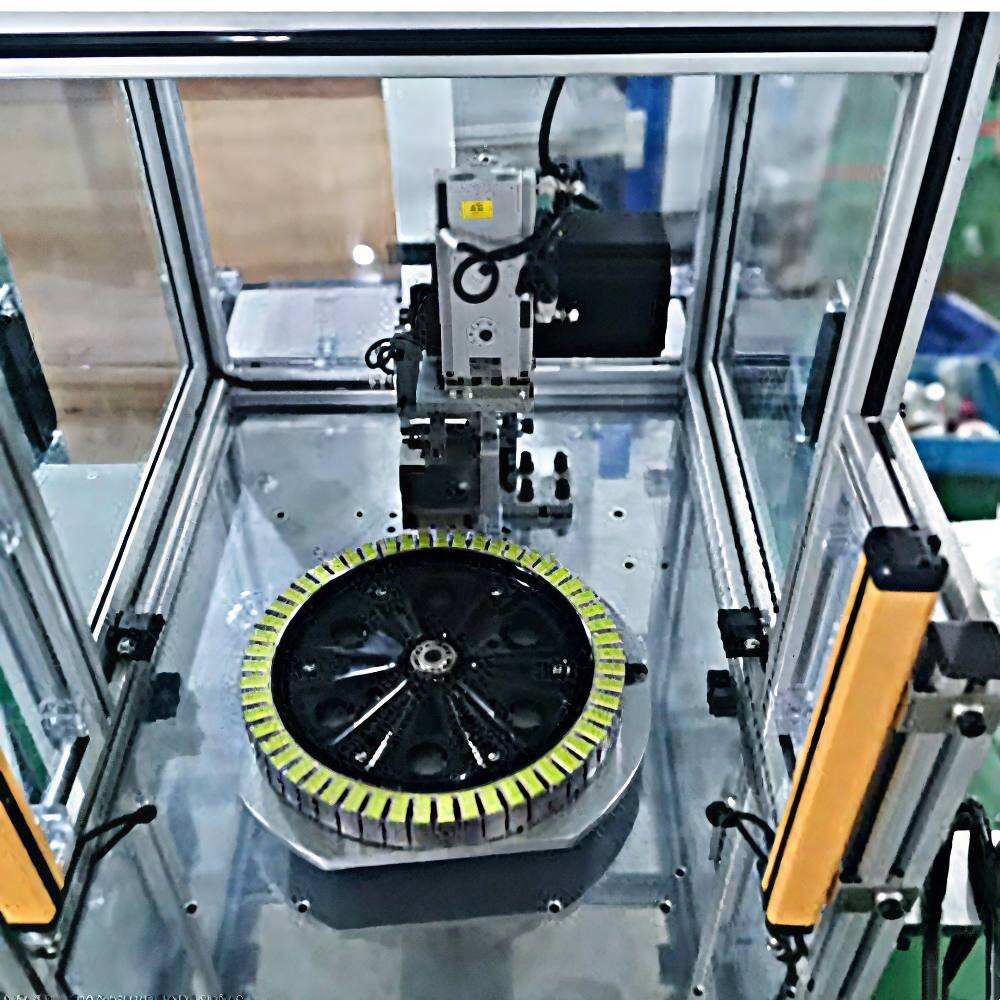

1.The machine adopts cylinder, PLC and touch screen control, with adjustable paper feeding length. It uses cylinders and motors to perform main operations including paper feeding, cutting, forming, paper ejection and indexing, inserting paper into every stator slot, and also has built-in shaping function.
2.The paper uses pre-formed paper supplied in roll material packaging.
3.The main machine is equipped with audible and visual alarm functions for low pressure, equipment failure, and wire breakage.
4.The main machine is equipped with a safety detection grating. When the grating signal is triggered during operation, the equipment pauses and requires pressing the start button again to resume operation, preventing equipment accidents.
