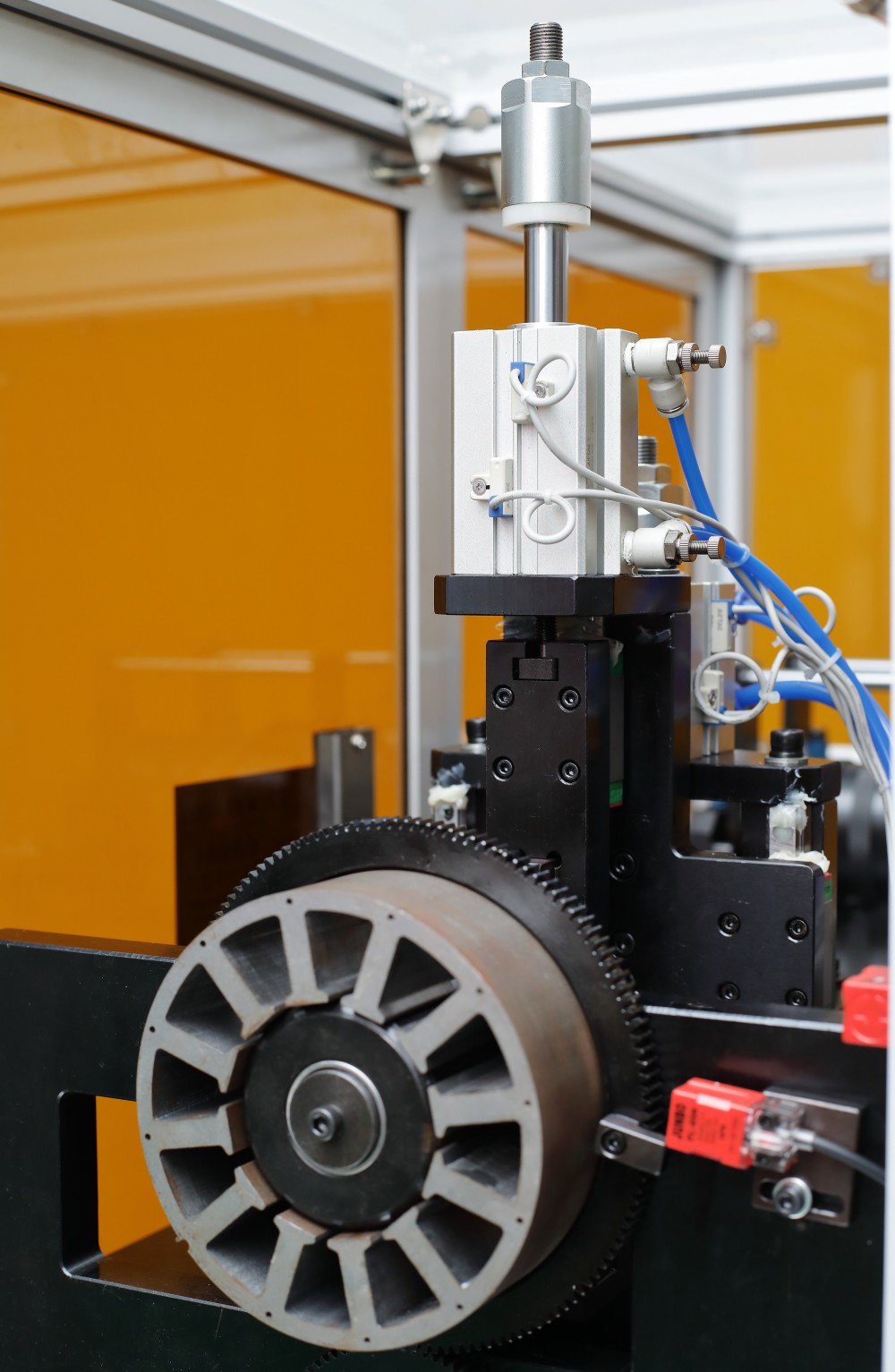

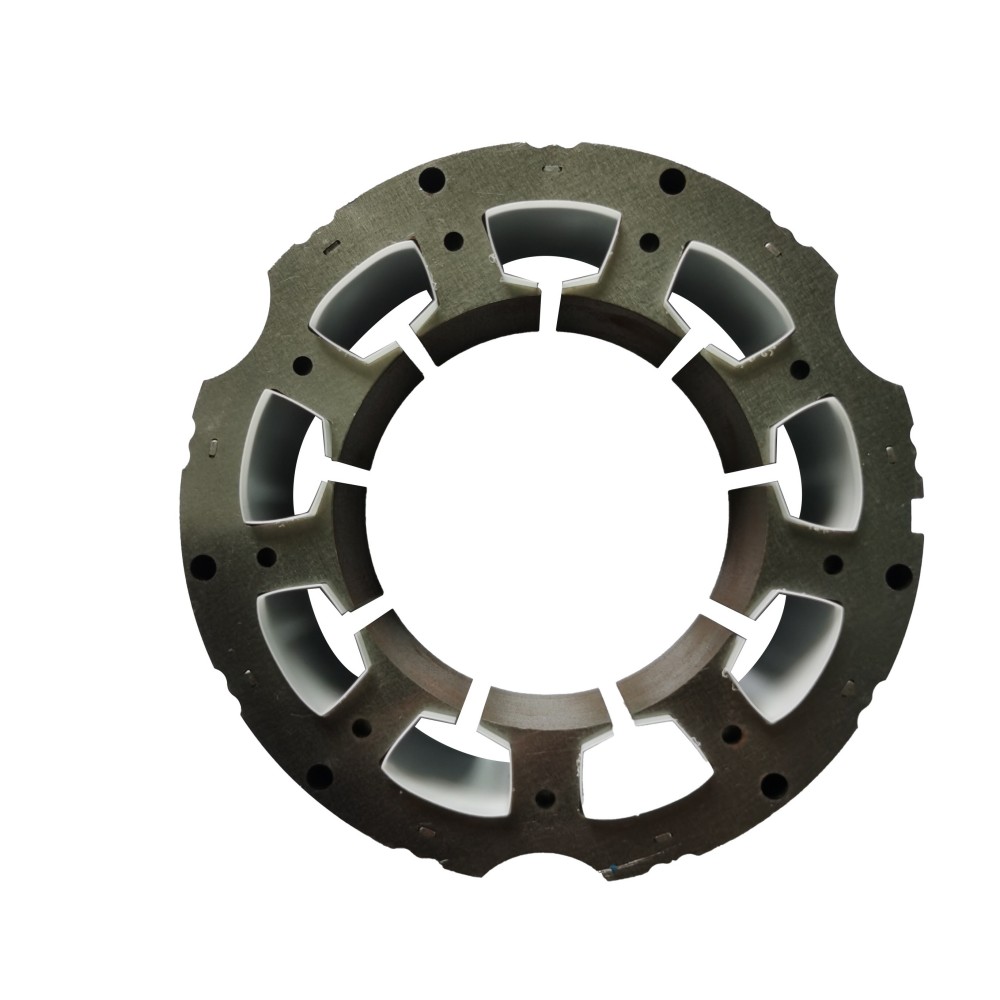

This equipment is widely used for slot paper insertion in brushless motor stators, primarily applied in power tools, household appliances, and industrial motors.Specifically designed for brushless motor stator paper insertion machines, it enhances the adhesion between slot paper and stators while ensuring simple and convenient operation.The equipment adopts Inovance 2-axis servo system, PLC control system, and a 7-inch touchscreen display.
| Input Voltage | AC 220V ±10%, 50Hz |
| Air Supply Pressure | 0.4-0.7 MPa |
| Equipment Power | 2.5 kW |
| Equipment Weight | Approximately 1000 kg |
| Overall Dimensions | 1100 × 1500 × 1800 mm (L × W × H) |
| Product Range | Ф20–Ф300 mm, Stack Height: 20–100mm (Customizable) |
| Wire Diameter Range | Ф0.2–Ф1.8 mm |
| Feeding Method | Automatic |
