Introduction

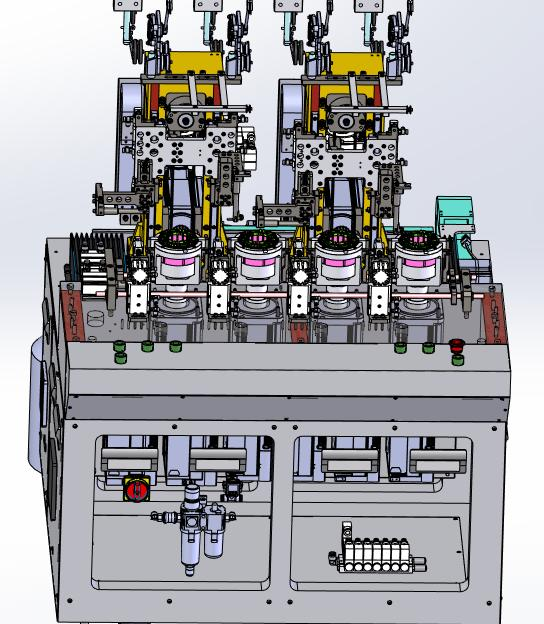

The Four-Station Needle Stator Winding Machine is designed for high-efficiency winding of brushless motor stators, fan motor stators, pump motor stators, automotive motor stators, and various multi-slot stators.
Featuring four-station simultaneous winding, independent servo control, precision wire laying, and stable tension management, the machine ensures consistent winding quality, neat coil arrangement, and a high slot fill rate. Each station operates independently, improving both winding accuracy and production efficiency.
The machine adopts a high-performance PLC control system, servo-driven motion control, precision guide rails, and ball screws, ensuring reliable operation, high positioning accuracy, and a long service life. The user-friendly touchscreen interface supports multiple program storage, quick product changeover, and flexible winding pattern programming.
Key Features
· Four-station simultaneous winding
· Needle winding technology
· Independent station control
· Precision coil winding and wire laying
· Fast tooling changeover
· Stable wire tension control
· Automatic wire clamping and cutting
· Servo motor-driven system
· High production efficiency
· Suitable for various motor stators
Applications
Suitable for winding stators used in:
· Brushless DC Motors (BLDC)
· Household Appliance Motors
Service & Support
RIMY provides professional motor winding solutions, customized tooling design, comprehensive technical support, and complete after-sales service for motor manufacturers worldwide.
