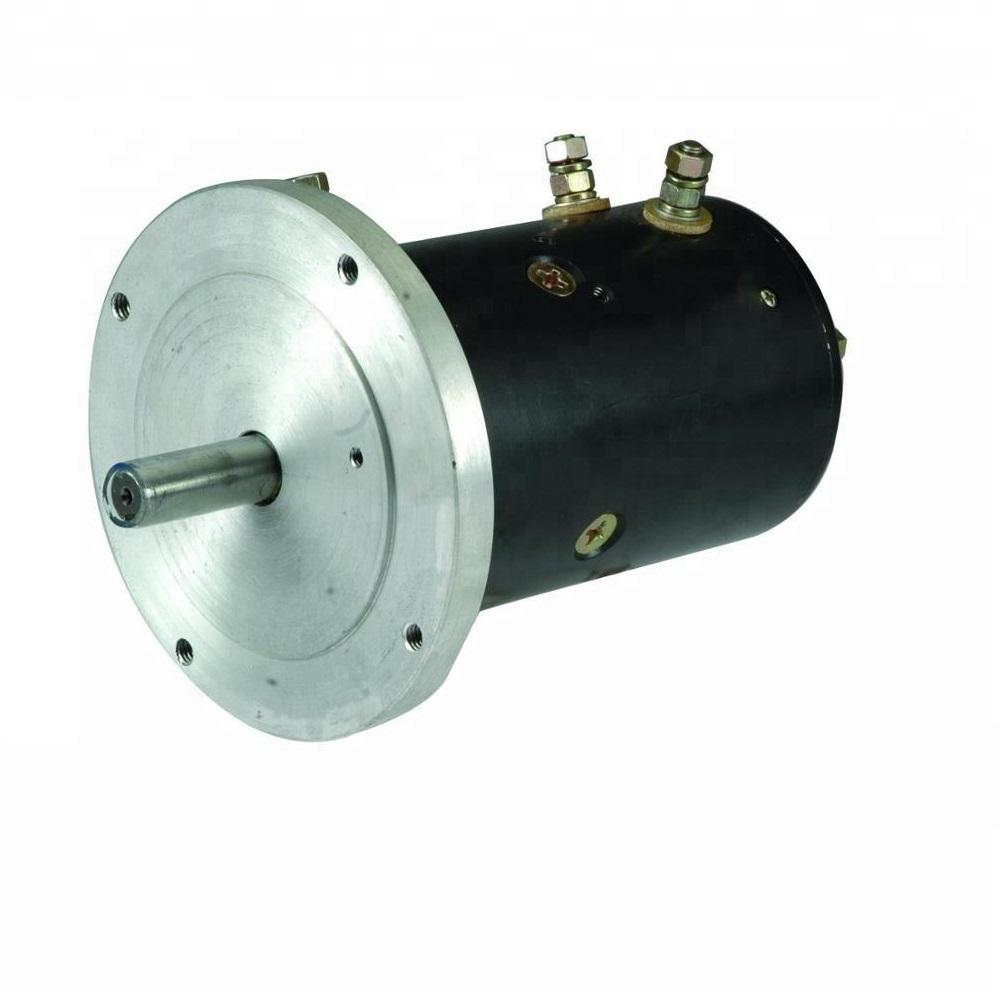

RM09ZX-24V DC Motor Application Scenarios
1.Dump Truck Auxiliary System Drive
Core power component for dump truck auxiliary mechanisms, delivering reliable 4N·m torque for tailgate operation, cab adjustment and other vehicle-mounted auxiliary functions.
2.Heavy-Duty Commercial Vehicle On-Board Equipment
Ideal for auxiliary power drive in heavy-duty commercial vehicles, including construction trucks, mining trucks and engineering vehicles, with IP67 waterproof rating for harsh outdoor environments.
3.Construction & Off-Highway Vehicle Applications
Suitable for powering small actuators, valves and mechanical components in construction machinery, off-highway vehicles and mining equipment, with Class F insulation for high-temperature resistance.
4.Special Vehicle & Aftermarket Modification
Supports optional 12V/48V/60V/72V configurations, perfect for modified vehicles, special purpose trucks and aftermarket retrofits, meeting diverse electrical system requirements.
5.Industrial Automation & Mechanical Actuation
Engineered for intermittent operation (3min-30%ED), ideal for industrial automation equipment, mechanical actuators and small lifting mechanisms requiring short-time high-load drive.
6.Customized OEM Vehicle Component Integration
With fully customizable voltage, power and structural parameters, tailored for vehicle manufacturers, truck modification factories and engineering equipment integrators, supporting mass OEM orders.
RM09ZX-24V DC Motor Technical Specifications
| Parameter | Specification |
| Motor Model | RM09ZX-24V |
| Scope of Application | Dump Truck |
| Rated Voltage | 24V DC (Optional: 12V, 48V, 60V, 72V) |
| Rated Power | 900W |
| Rated Current | 45A |
| Rated Torque | 4 N·m |
| Working System (Duty Cycle) | 3min-30%ED |
| Insulation Grade | Class F |
| Waterproof (Protection) Grade | IP67 |
| Tooth Number | 1 |
| Rotation Direction | CW (Clockwise) |
| Optional Configuration | 12V, 48V, 60V, 72V |
