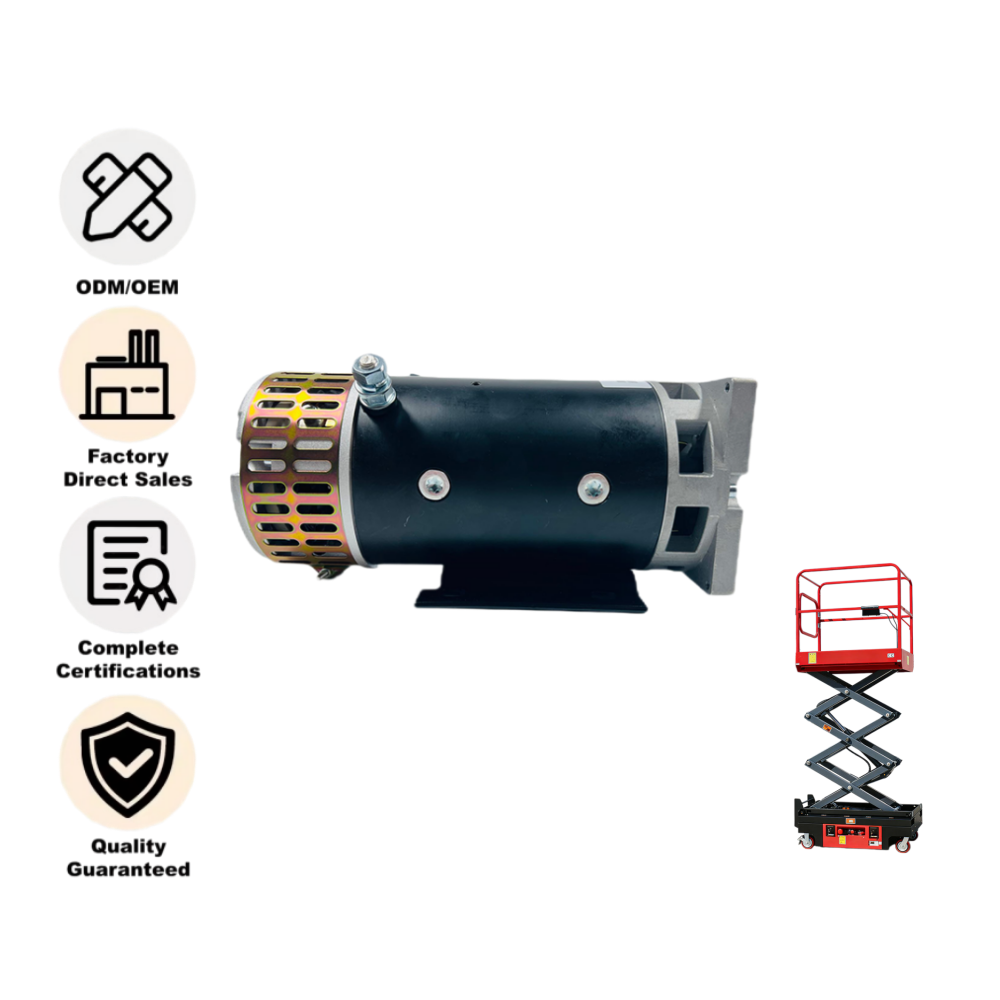

RM2430TW DC Motor Application Scenarios
1.Heavy-Duty Vehicle Power Unit Drive
Core power solution for 3kW high-power vehicle hydraulic power units, delivering 11N·m high torque for commercial trucks, vans and heavy-duty vehicle auxiliary systems.
2.Industrial Lifts & Scissor Lift Actuation
Ideal for powering heavy-duty scissor lifts, table lifts, vertical lifts and mechanical lifting equipment, optimized for 5min-15%ED intermittent operation in industrial environments.
3.Boarding Trucks & Access Lift Systems
Perfect for integrating into boarding trucks, wheelchair lifts, step lifts and vehicle access ramps, ensuring stable, high-torque lifting for heavy-load access operations.
4.Specialized Industrial & Off-Highway Equipment
Suitable for driving specialized industrial machinery, automation equipment, material handling systems and off-highway vehicles requiring 24V DC high-power drive.
5.Vehicle Modification & Aftermarket Retrofit
Supports optional 12V/48V configurations, ideal for custom modification of special vehicles, electric vehicles and non-standard industrial equipment.
6.OEM Integration for Vehicle & Machinery Manufacturers
With customizable voltage, power and structural parameters, tailored for vehicle manufacturers, equipment integrators and industrial automation projects, supporting mass OEM orders.

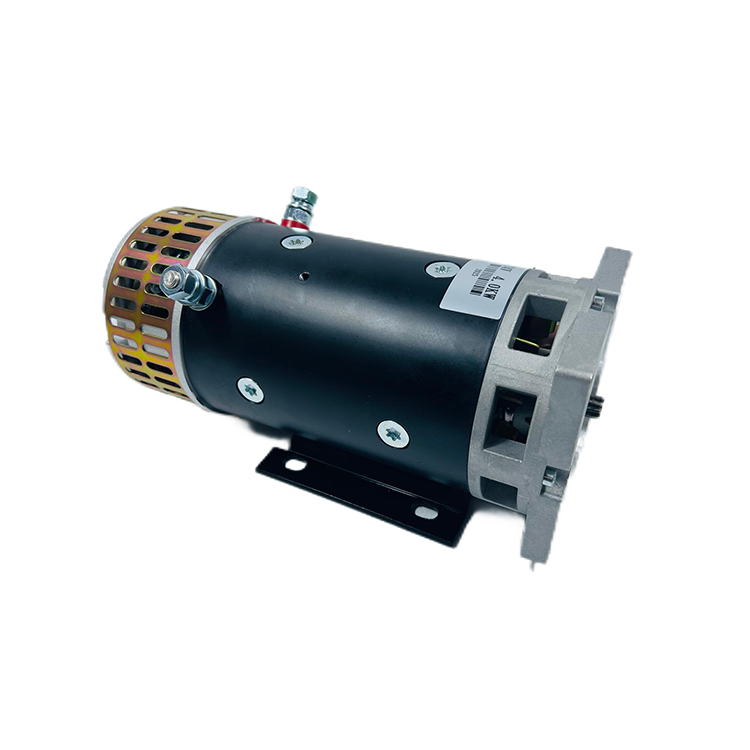

RM2430TW DC Motor Technical Specifications
| Parameter | Specification |
| Motor Model | RM2430TW |
| Scope of Application | Vehicle Power Units, Lifts, Boarding Trucks, Specialised Equipment |
| Rated Voltage | 24V DC (Optional: 12V, 48V) |
| Rated Power | 3000W |
| Rated Current | 160A |
| Rated Torque | 11 N·m |
| Working System (Duty Cycle) | 5min-15%ED |
| Insulation Grade | Class F |
| Protection Grade | IP20 |
| Tooth Number | 2 |
| Rotation Direction | CW (Clockwise) |
| Optional Configuration | 12V, 48V |
