RM2433PNK DC Motor Application Scenarios
1.Heavy-Duty Vehicle Power Unit Drive
Core power solution for 24V/48V high-power vehicle hydraulic power units, delivering 16Nm high torque for commercial trucks, vans and heavy-duty vehicle auxiliary systems.
2.Industrial Lifts & Scissor Lift Actuation
Ideal for powering heavy-duty scissor lifts, table lifts, vertical lifts and mechanical lifting equipment, optimized for 2min-10%ED intermittent operation in industrial environments.
3.Boarding Trucks & Access Lift Systems
Perfect for integrating into boarding trucks, wheelchair lifts, step lifts and vehicle access ramps, ensuring stable, high-torque lifting for heavy-load access operations.
4.Specialized Industrial & Off-Highway Equipment
Suitable for driving specialized industrial machinery, automation equipment, material handling systems and off-highway vehicles requiring high-power DC drive.
5.Vehicle Modification & Aftermarket Retrofit
Flange-mounted design with high power density, ideal for custom modification of special vehicles, electric vehicles and non-standard industrial equipment, facilitating easy integration into existing systems.
6.OEM Integration for Vehicle & Machinery Manufacturers
With customizable voltage (24V/48V) and performance parameters, tailored for vehicle manufacturers, equipment integrators and industrial automation projects, supporting mass OEM orders.

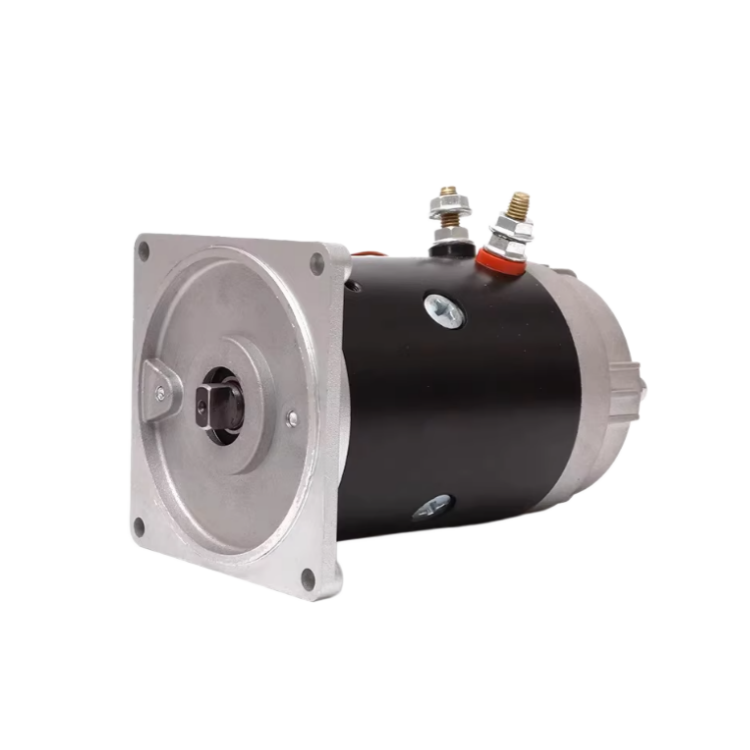

RM2433PNK DC Motor Technical Specifications
| Parameter | Specification |
| Motor Model | RM2433PNK |
| Scope of Application | Vehicle Power Units, Lifts, Boarding Trucks, Specialised Equipment |
| Rated Voltage | 24V DC (Optional: 48V) |
| Rated Power | 4500W |
| Rated Current | 230A |
| Rated Torque | 16 N·m |
| Working System (Duty Cycle) | 2min-10%ED |
| Insulation Grade | Class F |
| Protection (Waterproof) Grade | IP20 |
| Tooth Number | 9 |
| Rotation Direction | CW (Clockwise) |
| Optional Configuration | 48V |
