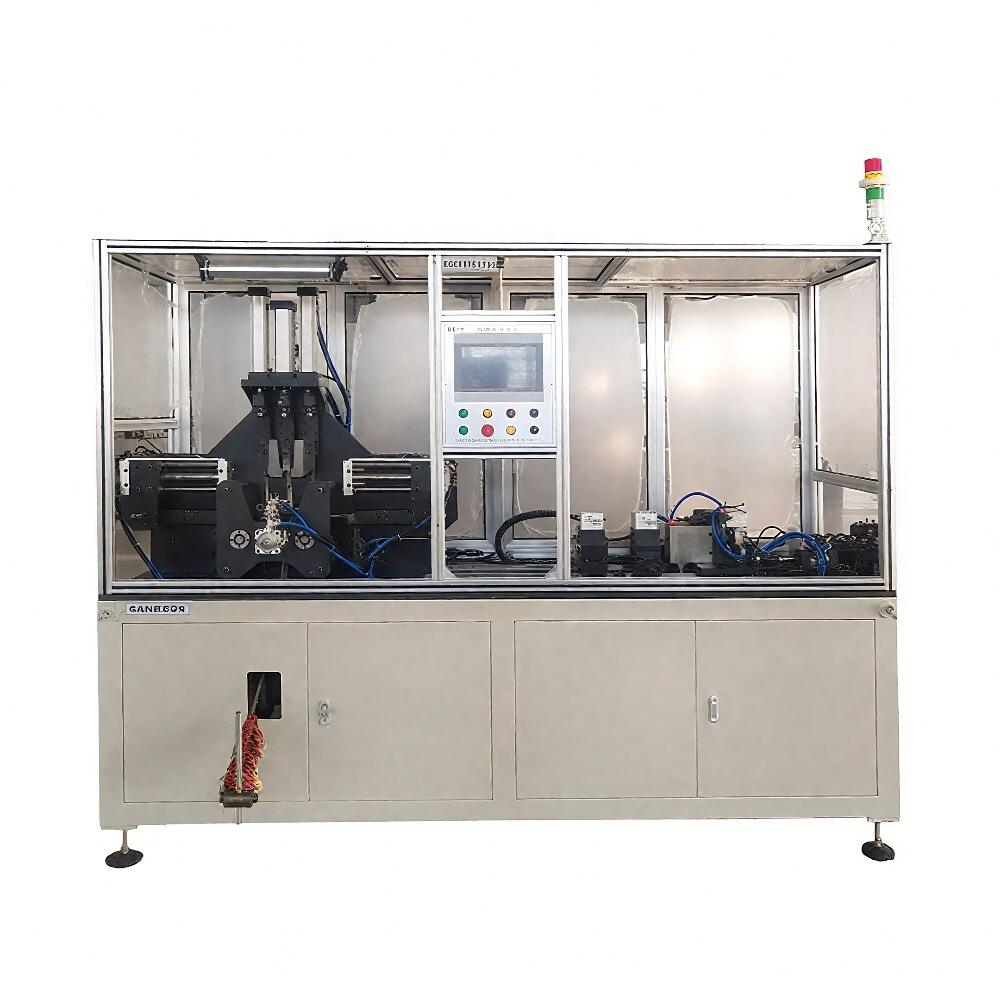

This automatic enameled copper wire stripping and bending machine is designed for motor manufacturing, supporting copper wires from φ1.7 to φ2.5 mm. It uses rotary stripping with adjustable length to ensure damage-free insulation removal. Equipped with cylinder feeding and mold forming for precise double ring bending. Features wire absence detection and automatic discharge to improve efficiency and reliability.
A specialized machine used to strip the insulation from enameled round copper wire and bend the wire into a specific shape using a forming die.
1. Power supply requirement: Single-phase three-wire AC 220V ±10% / 50Hz; Input power: 3KW;
2. Air source requirement: Dry compressed air 0.5 MPa;
3. Equipment dimensions (L × W × H): 2500 × 1000 × 1950 mm;
4. Machine cycle time: ≤ 8 seconds per piece;

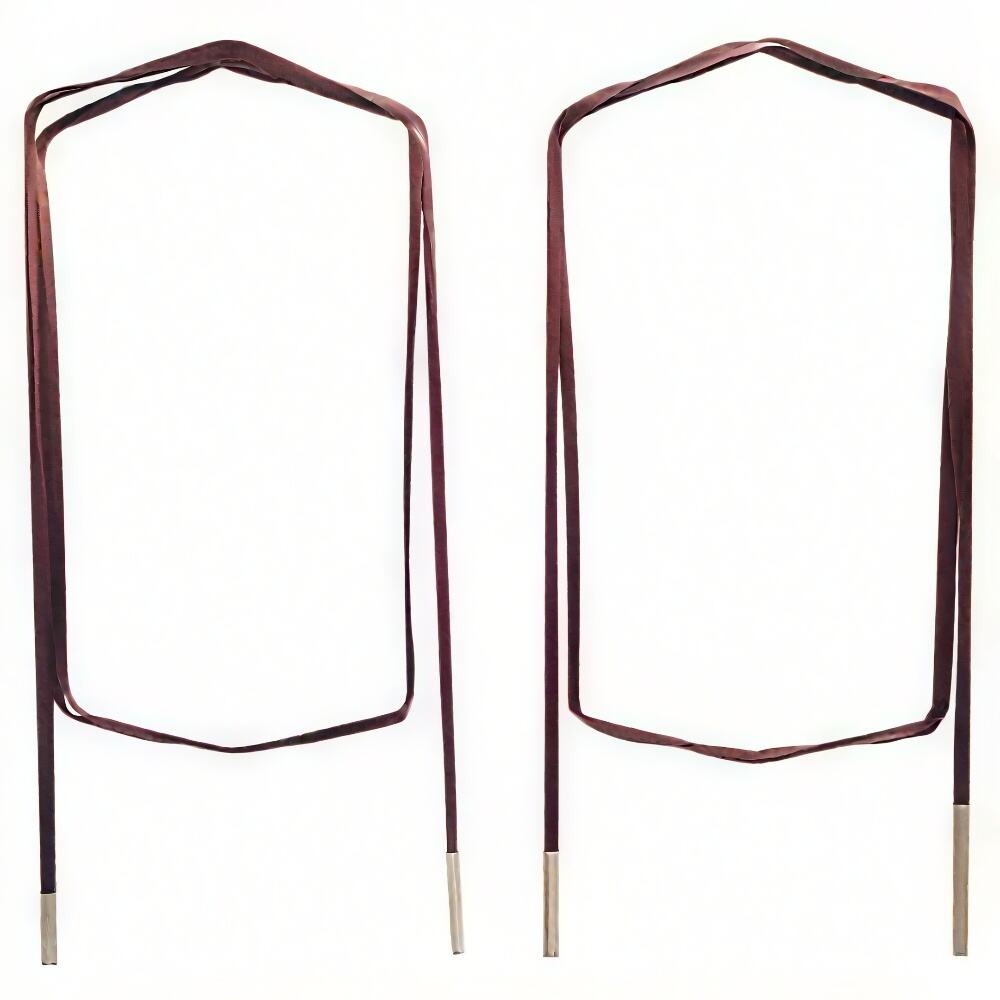

5. Forming method: Double ring shape;
6. Applicable wire gauge: φ1.7 – φ2.5 mm (bare copper wire diameter);
7. Paint stripping method: Rotary stripping, adjustable length 0–20 mm;
8. Wire feeding method: Cylinder;
9. Forming method: Mold forming;
10. Length deviation of finished wire: < 0.5 mm;
11. Paint stripping length deviation: < 1 mm;
12. Diameter after paint stripping: allowable ≤ 0.08 mm;
13. No damage to the stripped coating area after forming the wire end is allowed; verified by salt bath test (DC 24V, leakage current ≤ 5 mA);
14. Material receiving mechanism: maintain material receiving for at least 30 minutes, with full material alarm indicator;
15. The paint stripping mechanism fully considers tool lifespan and replacement operability, and extends the enamel wire guide rod length as much as possible to the end of stripping;
16. The straightening mechanism is easy to adjust and flexible to twist (with guide rail slot on the platform); currently no need to consider wire diameter replacement;
17. The cutting position mechanism is easy to adjust with scale markings; the cutting mechanism uses high-strength structure with a service life over 5 years (with guide rail slot on the platform); no flying debris allowed after copper wire cutting;
18. The wire feeding mechanism is flexible and simple to adjust (with guide rail slot on the platform).
Equipment functions:
Manual feeding → inserting copper wire into the cutting blade → wire straightening → automatic paint stripping → wire feeding → cutting → double ring wire automatic forming → automatic orderly material discharge
AIRTAC cylinder
Wire absence detection
Cutting blade (1 extra set supplied), forming blade (1 extra set supplied).

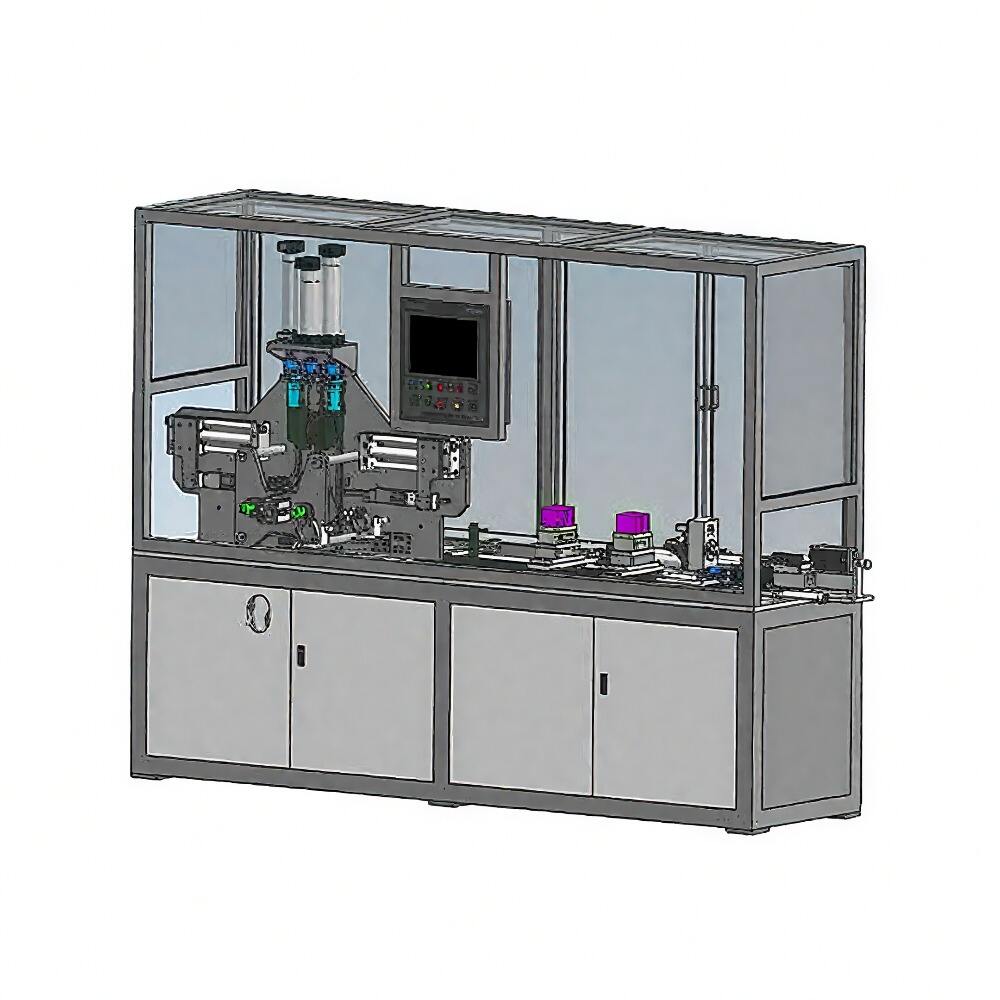

(Image for reference only; subject to final design)
